Coil manipulator

pneumaticwith gripping toolfor gripping

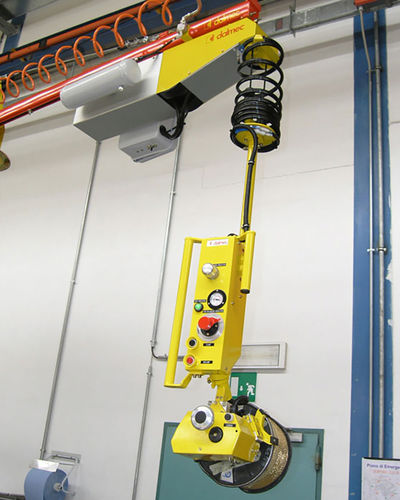

Manipulator Minipartner for coils of wire fitted with expanding mandrel tooling for gripping in the coil’s core and servo assisted pneumatic inclination of 90°. Hundreds of Dalmec manipulators are used for handling reels in the leading industries all over the world. Our manipulators are equipped with different types of gripping devices which are able to lift, rotate, tilt reels of all sizes and materials with a weight from 5 Kg to 900 Kg. Manipulator Minipartner for coils overhead trolley mounted The Manipulator is fitted with expanding mandrel tooling for gripping in the reel’s core and servo assisted pneumatic inclination of 90°. The gripping tool is connected to the balancing group by two singles cables to guarantee max safety. Mounted on a bridge crane with double runways, if offers an easy translation in order to cover a large working area. Characteristics: Max weight capacity: 50 Kg – Max working radius: 1800 mm Well-trained design staff are able to develop state-of-the-art equipment, which ensure the operators ergonomic use of the Manipulators. Every project is developed according to the instructions given by the Directive 2006/42/EC on machinery and after a careful and a methodical analysis of the risks.
