Pneumatic manipulator

with gripping toolpositioningfor materials handling

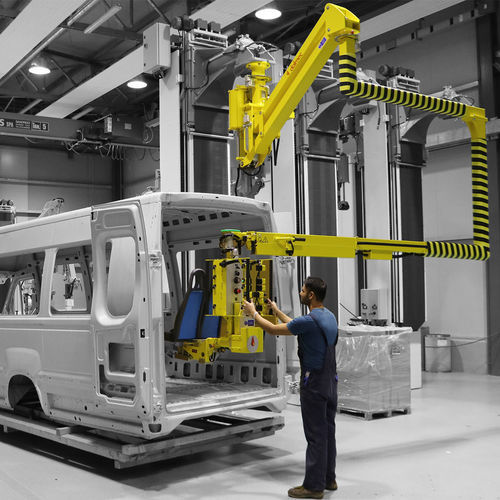

Balancing device for mounting seats with variable shapes and sizes. Manipulator Partner Equo, overhead trolley mounted version equipped with pinch jaws tooling for handling and installation of bus seats with variable shapes and types. The tooling is able to grip the seats positioned flat, to tilt them by 90° with a pneumatic device and release them in a vertical position inside the bus, thanks to a telescopic arm and a particular shaping of the terminal arm. The Manipulator is supplied complete with an overhead trolley to run in a tracking system, composed of two opposite aluminium U sections with connecting and stiffening ribs,complete with attachment points for an overhead suspension and end buffers. The junction between the various parts is done with screws. We consider safety a matter of utmost importance and a fundamental component common to all products that we manufacture in conformity with the UNI EN standards and in compliance with the EC Atex directives and with all safety guidelines and markings. Functional analysis, design, study of the different technical solutions available, simulations and prototypes creation are all phases in the production process that DALMEC carries out in close partnership with the client, with continuous controls and reviews during project development.
