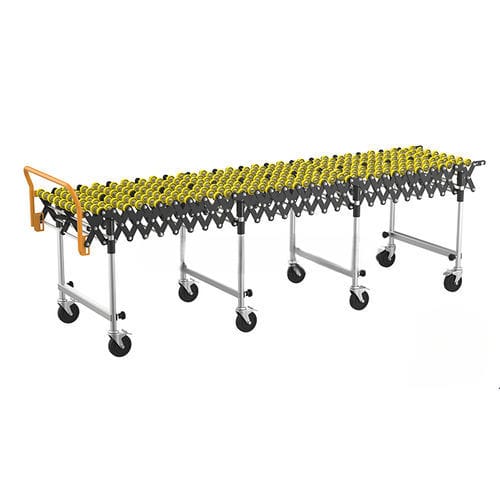

Skate wheel conveyor FWC series

curvedhandlingtelescopic

Overview

• High expansion ratio for adjustable length
• Space-saving telescopic design
• Lightweight construction with smooth wheel rotation
• Performs well on curved layouts
• Suitable for small to medium items

Description
Expandable, non-driven conveyor using skate-style wheels. Designed for flexible handling and temporary or variable-length conveying lines. Available in two wheel variants to match load and floor-contact requirements. Image on the original product page shows typical layout and components (image not included here).

Specifications
Φ48.5 plastic skatewheel expandable conveyor

• Recommended for lightweight items; plastic wheel bottom material may be prone to wear

Model | Unit | Length mm | Width mm | Height mm | Load/Unit kg (no shock load)
FWC-P | 2 | 870-2480 | 500 / 600 | 700~1000 / 550~700 | 70
FWC-P | 3 | 1190-3510 | 500 / 600 | 700~1000 / 550~700 | 70
FWC-P | 4 | 1510-4540 | 500 / 600 | 700~1000 / 550~700 | 70
FWC-P | 5 | 1830-5570 | 500 / 600 | 700~1000 / 550~700 | 70
FWC-P | 6 | 2150-6600 | 500 / 600 | 700~1000 / 550~700 | 70

Φ49 steel skate wheel expandable conveyor

• Suitable for medium-weight items; steel wheel bottom material for higher durability

Model | Unit | Length mm | Width mm | Height mm | Load/Unit kg (no shock load)
FWC-C | 2 | 870-2480 | 500 / 600 | 700~1000 / 550~700 | 70
FWC-C | 3 | 1190-3510 | 500 / 600 | 700~1000 / 550~700 | 70
FWC-C | 4 | 1510-4540 | 500 / 600 | 700~1000 / 550~700 | 70
FWC-C | 5 | 1830-5570 | 500 / 600 | 700~1000 / 550~700 | 70
FWC-C | 6 | 2150-6600 | 500 / 600 | 700~1000 / 550~700 | 70

Skate wheel
Available in plastic skatewheel (Φ48.5) and steel skate wheel (Φ49) variants to match item weight and floor/contact requirements.

Technical characteristics

• Product type: Non-driven skate-wheel expandable conveyor
• Main features: high expansion ratio; space-saving; lightweight; smooth rotation; suitable for curves; for small to medium items
• Wheel types: Φ48.5 plastic skatewheel and Φ49 steel skate wheel
• Plastic variant: recommended for light-weight items; bottom material may wear
• Steel variant: suitable for medium-weight items; harder bottom material for durability
• Model series: FWC-P (plastic), FWC-C (steel)
• Unit configurations available: 2, 3, 4, 5, 6
• Length ranges by unit count (mm): 2: 870-2480; 3: 1190-3510; 4: 1510-4540; 5: 1830-5570; 6: 2150-6600
• Width options (mm): 500, 600
• Height options (mm): 700~1000 and 550~700
• Load per unit: 70 kg (no shock load)
