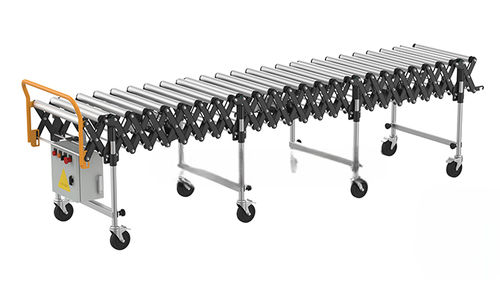

Belt conveyor FWD series

rollerdriven rollertransport

Overview

• 90 W motor
• Forward and reverse rotation
• Stepless speed regulation
• Linkage control up to three units
• Voltage options: 220 V / 380 V / 400 V

Specifications
Motorized Roller Expandable Conveyor (Driven by Poly-vee belt):

• Transport speed: 10-35 m/min
• Max weight: 60 kgs/pc

Model (Poly-vee) table
Model | Unit | Length (mm) | Width (mm) | Height (mm) | Load/Unit (kg) (no shock load)
FWDP-50 | 2 | 1120-2700 | 600 / 750 / 900 | 700~1000 | 60
FWDP-50 | 3 | 1540-3800 | 600 / 750 / 900 | 700~1000 | 60
FWDP-50 | 4 | 1960-4900 | 600 / 750 / 900 | 700~1000 | 60
FWDP-50 | 5 | 2380-6000 | 600 / 750 / 900 | 700~1000 | 60
FWDP-50 | 6 | 2800-7100 | 600 / 750 / 900 | 700~1000 | 60

Motorized Roller Expandable Conveyor (Driven by O-belt)

• Transport speed: 10-35 m/min
• Max weight: 50 kgs/pc

Model (O-belt) table
Model | Unit | Length (mm) | Width (mm) | Height (mm) | Load/Unit (kg) (no shock load)
FWDR-50 | 2 | 1120-2700 | 600 / 750 / 900 | 700~1000 | 50
FWDR-50 | 3 | 1540-3800 | 600 / 750 / 900 | 700~1000 | 50
FWDR-50 | 4 | 1960-4900 | 600 / 750 / 900 | 700~1000 | 50
FWDR-50 | 5 | 2380-6000 | 600 / 750 / 900 | 700~1000 | 50
FWDR-50 | 6 | 2800-7100 | 600 / 750 / 900 | 700~1000 | 50

Roller types and dimensions
Double Grooved Conveyor Roller / Poly-Vee Conveyor Roller (examples shown):
Tube Dia. (D): Φ50 | t: 1.5 | Shaft Dia. (d): Φ12
Tube Material options: Zinc plated steel (available); Stainless steel (optional)

Options

• PVC sleeve available for improved surface friction
• Voltage and motor configuration adjustable on request
