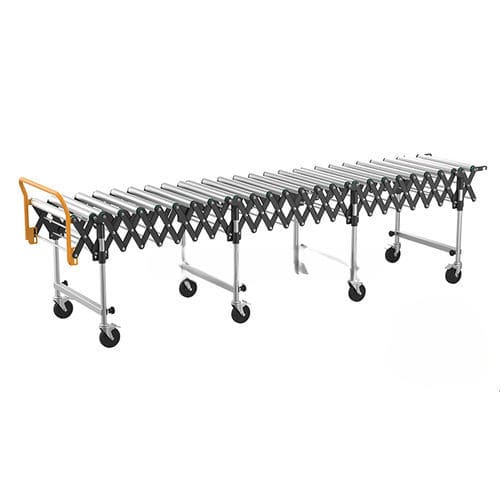

Roller conveyor FWA series

handlingfor materials handlingtelescopic

Overview
High load capacity per roller unit. Smooth and quiet operation. Suitable for handling medium to large items in manufacturing and logistics environments. Expandable length for flexible handling and compact storage.

Product description

• Non-driven roller expandable conveyor for handling medium to large items.
• Available in Φ38 (FWA-38) and Φ50 (FWAH-50) tube diameters with 2 to 6 roller units.
• Polymer bearing housing and end cap design to ensure quiet operation and reliable support.

Specifications
Φ38 single roller expandable conveyor
Model | Unit | Length mm
FWA-38 | 2 | 980-2480
FWA-38 | 3 | 1350-3510
FWA-38 | 4 | 1720-4540
FWA-38 | 5 | 2090-5570
FWA-38 | 6 | 2460-6600
Width mm: 500, 600 (options)
Height mm: 700~1000, 550~700 (options)
Load/Unit kg (no shock load): 80

Φ50 single roller expandable conveyor
Model | Unit | Length mm
FWAH-50 | 2 | 1120-2700
FWAH-50 | 3 | 1540-3800
FWAH-50 | 4 | 1960-4900
FWAH-50 | 5 | 2380-6000
FWAH-50 | 6 | 2800-7100
Width mm: 600, 750, 900 (options)
Height mm: 700~1000, 550~700 (options)
Load/Unit kg (no shock load): 100

Roller details

• Tube Dia. (D) | t | Shaft Dia. (d) | Tube Material options.
• Φ38: t = 1.2 mm; Shaft Φ12 mm; Zinc plated steel standard, stainless steel optional.
• Φ50: t = 1.5 mm; Shaft Φ12 mm; Zinc plated steel standard, stainless steel optional.

Features

• Polymer bearing housing and end cap design.
• Smooth, quiet running suitable for production and packing lines.

Technical specifications

• Product type: Non-driven roller expandable conveyor.
• Applicable rollers: Φ38 and Φ50 tube diameters.
• Tube thickness: Φ38 t=1.2 mm; Φ50 t=1.5 mm.
• Shaft diameter: Φ12 mm.
• Available model series: FWA-38, FWAH-50 (2 to 6 roller units).
• Length ranges vary by unit count (see specifications above).
• Width options: 500 / 600 mm (Φ38); 600 / 750 / 900 mm (Φ50).
• Height adjustable ranges: 700–1000 mm and 550–700 mm (options).
• Load per unit (no shock): Φ38 ≈ 80 kg; Φ50 ≈ 100 kg.
