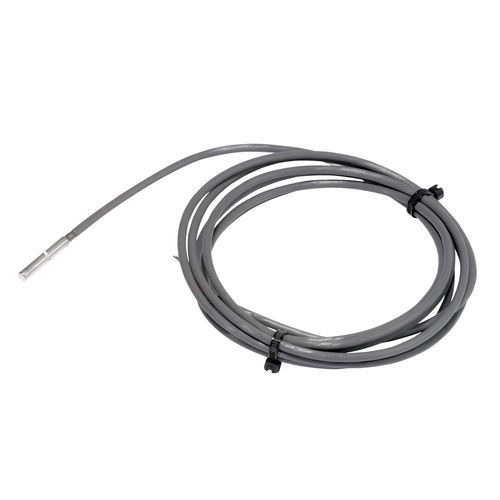

Pt100 temperature sensor MBT 153

insertionbare wires4-pole

Product overview
MBT 153 is a Pt100 industrial temperature sensor with a 10.3 m Teflon cable and a 6 mm AISI 305 protection tube. Designed for variable insertion and continuous measurement in harsh environments, it is rated IP68 and complies with EN 60751 (Class B).

Short description

• Measuring range [°C]: -50 to 200
• Electrical connection: 4‑wire cable
• Cable type: Teflon, length 10.3 m
• Protection tube: 6 mm, AISI 305
• Output signal: Ohm (Pt100)

Key details

• Type: MBT 153
• Product group: Sensors
• Product name description: Temperature sensor
• EAN: 5702423284610
• Gross weight: 0.427 Kilogram
• Net weight: 0.414 Kilogram
• Volume: 0.49 Liter

Technical specifications

• Type designation: MBT 153-4002-1030
• Measuring range (°C): -50 to 200 °C
• Measuring range (°F): -58 to 392 °F
• Sensor element type: Pt
• Sensor element resistance: 100 Ohm
• Sensor element quantity: 1 pc
• Sensor element standard: EN 60751
• Sensor element tolerance: Class B
• Output signal: Ohm
• Cable length: 10.3 m (406 in)
• Cable temperature range: -80 °C to 200 °C (-112 °F to 392 °F)
• Cable type: Teflon
• Electrical connection: Cable
• Electrical connection size: 4 wire
• Wires: 4 pc
• Insertion type: Variable
• Protection tube diameter: 6 mm (0.236 in)
• Protection tube material: AISI 305
• Enclosure rating: IP68
• Packing format: Multi pack
• Quantity per packing format: 8 pc
• Gross weight: 0.427 Kilogram
• Net weight: 0.414 Kilogram
• Volume: 0.49 Liter
• EU RoHS compliance: Yes
• China RoHS compliance: Out of scope
• REACH Candidate List substances: No
• Contains batteries: No
• EEE category: 5 small equipment (any external dimension < 50 cm)
• Approval / Mark: CE
