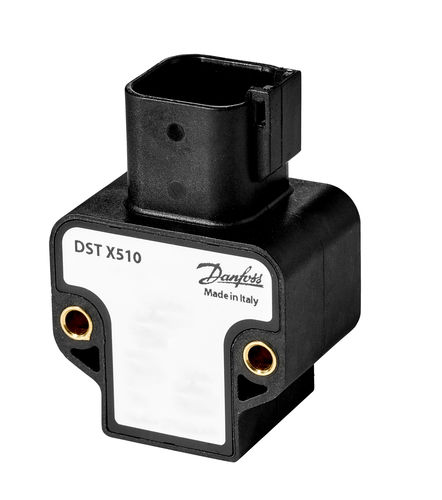

Absolute angle encoder DST X510

single-turnanalog5VDC

Product name
Rotary position sensor, DST X510, 180 °, Redundant, Ratio metric

Short description
Supply voltage [V] DC: 5 V; Electrical connection: Deutsch (6 pin), standard DT04-6P; Rotational direction: CCW + CW; Specification key: DR180180LA14A00 0033X00

Basic product data
Product code: 098G1001
Type: DST X510
Product group: Sensors
Product Name Description: Rotary position sensor
Gross weight: 0.082 Kilogram
Net weight: 0.07 Kilogram
Volume: 0.253 Liter
EAN: 5702428572989

Technical details
Actuator: A
Angle / Channel 1 [°]: 180 °
Angle / Channel 2 [°]: 180 °
Circuit type: Redundant
Output signal: Ratiometric
Supply voltage [V] DC: 5 V
Electrical connection: Deutsch (6 pin)
Electrical connection standard: DT04-6P
Contains batteries: No
Approval: CE
CE mark: Yes
EU RoHS compliance: Yes with exemptions (exemption clause: 6(c))
China RoHS compliance: Out of scope
Packing format: Multi pack
Quantity per packing format: 20 pc
REACH Candidate List substances: Lead (CAS no. 7439-92-1)
Rotational direction: CCW + CW
SCIP dossier no.: a707096f-52fa-4871-9e91-55f08f6518d1
SCIP dossier product name: GRA
Specification key: DR180180LA14A00 0033X00
UL mark: No

Documents available (selected)
Data sheet: Rotary position sensor, DST X510 (AI562740196805en-010202)
Installation guide: Rotary sensor with shaft DST X510 (AN30144419278701-000201)
Operating guide: DST X510 and DST X520 Rotary position sensors SAE J1939 (AQ304226795410en-000201)
Operating guide: DST X510 and DST X520 Rotary Sensor CANopen (AQ304227809412en-000201)

Technical specifications

• Model: DST X510
• Supply voltage: 5 V DC
• Output signal: Ratiometric
• Circuit type: Redundant
• Actuator: A
• Angle/channel (1 & 2): 180 ° / 180 °
• Electrical connection: Deutsch, 6 pin, standard DT04-6P
• Rotational direction: CCW + CW
• Gross weight: 0.082 kg
• Net weight: 0.07 kg
• Volume: 0.253 L
• Packing: Multi pack (20 pcs)
• EU RoHS: Yes with exemptions (6(c))
• REACH candidate substance: Lead (CAS 7439-92-1)
• SCIP dossier no.: a707096f-52fa-4871-9e91-55f08f6518d1
• Specification key: DR180180LA14A00 0033X00
