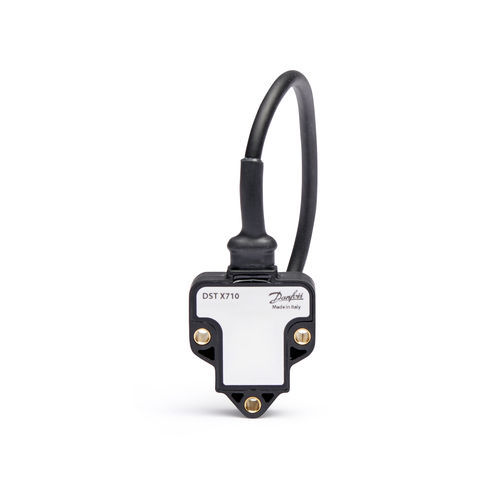

Dual-axis inclinometer DST X710

0-10 VIP67for angle measurement

Overview
The DST X710 inclination position sensor measures angular displacement up to 30° on two axes and provides an analog 0–10 V output. Designed for industrial applications requiring a compact, cable-connected IP67 sensor with 9–36 V DC supply and a single circuit output.

Product information
Model: DST X710
Product group: Sensors
Product name: Inclination position sensor
EAN: 5714279871869
Gross weight: 0.05 kg
Net weight: 0.05 kg
Volume: 0.699

Additional attributes

• Supply voltage (DC): 9–36 V (min 9 V, max 36 V)
• Electrical connection: Cable (length 2 m)
• Axis type: Dual (two-axis measurement)
• Circuit type: Single
• Output signal: 0–10 V analog
• Enclosure rating: IP67
• CE marked: Yes
• EU RoHS: Yes (exemption clause 6(c))
• REACH candidate substance: Lead (CAS 7439-92-1)
• Packing format: Multi pack (10 pcs)
• Contains batteries: No
• UL mark: No

Technical specifications

• Model: DST X710
• Measuring range: 30°
• Output signal: 0–10 V
• Supply voltage (DC): 9–36 V
• Axis type: Dual
• Circuit type: Single
• Electrical connection: Cable (2 m)
• Enclosure rating: IP67
• Contains batteries: No
• CE mark: Yes
• EU RoHS compliance: Yes (exemption 6(c))
• REACH candidate substance: Lead (CAS 7439-92-1)
• Packing format: Multi pack (10 pc)
• Gross weight: 0.05 kg
• Net weight: 0.05 kg
• Volume: 0.699
• Specification key: FO030000HA20 0033X20
• SCIP dossier no.: 51398af9-5779-4efb-84eb-6744fc3c0ad7
