Dual-axis inclinometer DST X710

ratiometricIP67for angle measurement

Product overview
Inclination position sensor DST X710 with a 15° measuring range. Single-circuit, ratio-metric output. Supply voltage: 5 V DC. Electrical connection via fixed cable (0.2 m). Axis type: Dual. Product code: 098G2513. Specification key: X710-FO015000LA10 0033X02. This compact IP67 sensor is designed for industrial inclination measurement and straightforward integration on machines and equipment.

Documents

• Data sheet: Inclination position sensor, DST X710 (AI562746381831en-010102)
• Installation guide: DST X710 Inclination sensor (AN30144637278901-000101)
• Operating guide: DST X710 Entry level inclination sensor CANopen Operating guide (AQ303534530286en-000101)

Visuals

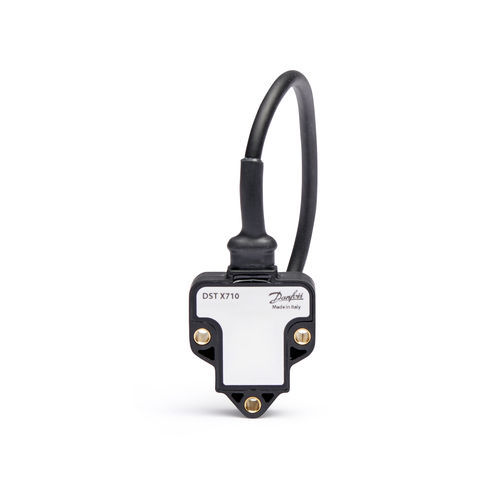

• Product photo: DST X710 Position Sensor
• 3D model / drawings: DST X710_Cable (jpg, png, STEP available)

Caractéristiques / spécifications techniques

• Type: DST X710
• Product group: Sensors
• Product name description: Inclination position sensor
• Gross weight: 0.095 Kilogram
• Net weight: 0.046 Kilogram
• Volume: 0.699 Liter
• EAN: 5714279778922
• Accessories: NO
• Approval: CE
• Axis type: Dual
• Cable length: 0.2 m
• CE mark: Yes
• China RoHS compliance: Out of scope
• Circuit type: Single
• Contains batteries: No
• Electrical connection: Cable
• Electrical connection standard: NONE
• Enclosure rating IP: IP67
• EU RoHS compliance: Yes with exemptions
• EU RoHS exemption clause: 6(c)
• Measuring range 1: 15 °
• Output signal: Ratio metric
• Packing format: Multi pack
• Quantity per packing format: 10 pc
• REACH Candidate List substances: Lead (CAS no. 7439-92-1)
• SCIP dossier no.: 51398af9-5779-4efb-84eb-6744fc3c0ad7
• SCIP dossier product name: GIB
• Specification key: X710-FO015000LA10 0033X02
• Supply voltage [V] DC: 5 V
• UL mark: No
