Gantry automatic loader M Hybrid

Overview

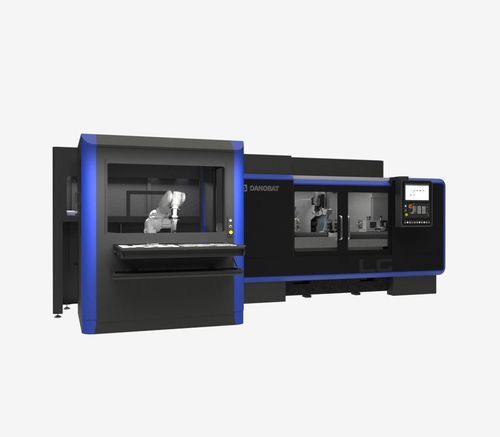

Hybrid solution combining an integrated gantry and an external robot cell; feeding/unloading is performed outside the machine enclosure.

Key features

• Integrated gantry mounted on the machine
• External robot cell for (un)loading
• Designed to load a single machine
• Feeding system can be in-house or third-party

Standard options

• Gripper configurations: one gripper (part weight up to 15 kg) or two grippers (part weight up to 4 kg)

Feeding and storage

• Pallet/conveyor loop
• Stacker cell / tower with pallets
• V-support conveyor

Auxiliary stations

• SPC station
• NOK rejected-parts station
• Post-process measuring station
• Blowing / air-cleaning station

Automation properties

• Occupied floor space: 100%
• (Un)loading time: 40%
• Part size: 60%
• Number of auxiliary stations: 80%

Multimedia

• Product images and an MP4 video illustrating the M Hybrid

Technical specifications

• Model: M Hybrid
• Type: Hybrid solution combining integrated gantry and external robot cell
• Feeding system (un)loading performed outside machine enclosure
• Feeding system: in-house or third-party
• Capacity: configured to load one machine
• Handling options: single or dual gripper configurations (examples of part weights shown)
• Feeding/storage options: pallet/conveyor loop, stacker cell/tower with pallets, V-support conveyor
• Auxiliary stations available: SPC, rejection station, post-process measuring, blowing station
