Automated loading system
semi-automaticcontinuous flowrobotized

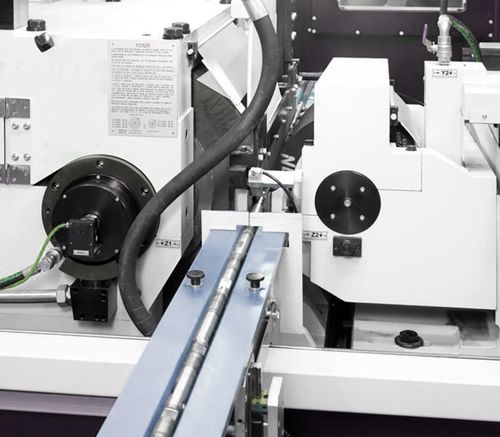

Automated loading system - DANOBATGROUP - semi-automatic / continuous flow / robotized
Automated loading system - DANOBATGROUP - semi-automatic / continuous flow / robotized
Automated loading system - DANOBATGROUP - semi-automatic / continuous flow / robotized - image - 2
Automated loading system - DANOBATGROUP - semi-automatic / continuous flow / robotized - image - 3
Add to favorites
Compare this product

Characteristics

Options
automated, semi-automatic, continuous flow, robotized, with scanning system, for grinding machines

Description

Overview
  • Automated loading system that deposits raw parts directly into the machining area between grinding wheels.
  • Feeding is performed outside the machine enclosure; compatible with manual, semi-automatic or fully automated workflows.
  • Supplied as a machine-mounted solution or integrated with third‑party equipment; scalable for single or multiple machines.


Standard options
  • Friction flat‑belt conveyor — transports and accumulates parts sequentially onto the workrest/blade.
  • Double friction flat‑belt (V‑type) — two flat belts arranged in a V for sequential transport and accumulation.
  • Vibration linear conveyor — linear vibratory transport and accumulation of parts.


Feeding and auxiliary systems
  • Hopper feeder — operator fills drawer or basket; elevator separates and deposits parts onto a feeding belt.
  • Vibratory bowl feeder — vibratory feeding and orientation for a large number of small parts.
  • Stack cell with pallets and robot — pallet tower (with or without trolley) for high autonomy; optional robot handling.
  • Step‑by‑step conveyor belt with spacers — horizontal transfer with separators to isolate individual parts.
  • Bin picking — robot with machine vision empties containers of randomly oriented parts and can load the machine or feed another loader.
  • Part orientation — orientation and positioning modules to ensure correct subsequent machining operations.


Integration and operation
  • Can be delivered as built‑in equipment or integrated from third‑party systems depending on factory layout and automation strategy.
  • Scalable architecture supports single‑machine installation or feeding multiple machines within a cell.
  • Configurable automation levels: manual feed, indexed/semi‑automatic, or continuous robotic loading.
  • Design allows safe access for maintenance and straightforward integration with existing conveyors and PLC/robot controllers.


Technical specifications
  • Occupied floor space: 60% (relative indicator shown on page).
  • (Un)loading time: 20% (relative indicator shown on page).
  • Part size capacity: 100% (indicates supported part size range shown on page).
  • Number of auxiliary stations: 40% (relative indicator shown on page).
