Production machine automation system L Hybrid

loading robotic cellloading stationfor process control

Overview

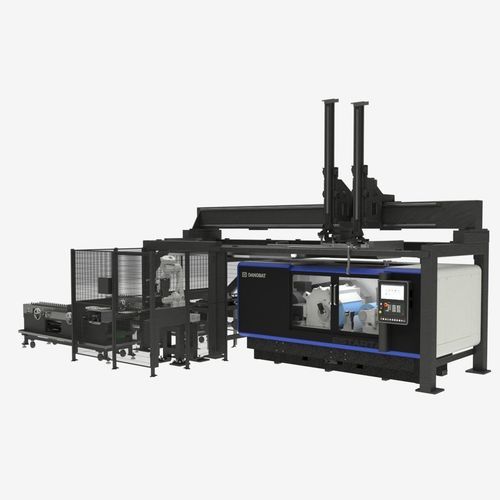

Hybrid automation solution combining an external gantry and an external robot cell. The feeding/ (un)loading system is placed outside the machine enclosure. Can be supplied by Danobat or integrated with third‑party systems. Capable of feeding one or multiple machines.

Key features

• Hybrid configuration: external gantry + external robot cell
• (Un)loading performed outside the machine enclosure
• Integration: Danobat-built or third-party feeding systems
• Feeds one or more machines, configurable by application
• Adaptable to conveyors, pallet systems and part-specific handling

Standard options

• Loading
  • Supports conveyor
  • Manual pallet loading
  • Closed-loop pallet conveyor
• Feeding and storage
  • V-supports conveyor
  • Manual pallet loading
  • Closed-loop pallet conveyor

Auxiliary stations (examples)

• SPC station (statistical process control)
• Blowing / cleaning station
• Part-turning / flip station
• Part handling and pallet conveyors

Technical specifications

• Commercial designation (model): L Hybrid
• Brand: Danobat
• System type: Combination of external gantry + external robot cell for (un)loading and feeding
• Feeding system location: Outside the machine enclosure
• Feeding system: Danobat-built or third-party
• Machine loading capability: Loads one or more machines
• Typical auxiliary stations: SPC, blowing station, part-turning station, part-handling / pallet conveyors (configuration dependent)
• Standard configurable options: supports conveyor, manual pallet loading, closed-loop pallet conveyor
• Available media: product video (MP4)
