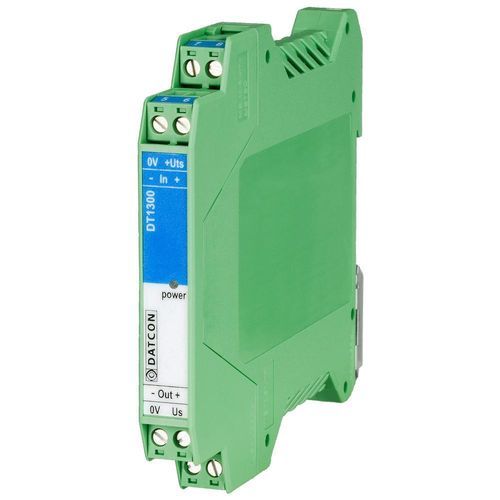

Intrinsically safe signal isolator DT1300

galvanicpoweranalog input

Product features

• 0-20 mA / 4-20 mA / 0-10 V inputs
• 0-20 mA / 4-20 mA / 0-10 V outputs
• 17 VDC / 18 VDC transmitter supply
• Non-linearity < 0.01%
• Temperature-coefficient < 50 ppm / °C
• 19-29 VDC supply voltage
• TS-35 rail mounting, 12.5 mm width
• 18 different types

Product description
The DT1300 … Intrinsically Safe Isolators / Power Supplies provide signal transmission between transmitters operate in zone 0, zone 1 potentially explosive area and the signal processing units operate in the safe area.
The DT1300 … family galvanically isolate the input, the output and the power supply.
The intrinsically safe input signal may be 0-20 mA, 4-20 mA, 0-10 V, the output signal also may be 0-20 mA, 4-20 mA, 0-10 V.
The isolators available with two different transmitter supplies (17 VDC or 18 VDC). The safety data these two types differ considerably from each other, thus they can be flexibly matched to the various transmitters. The transmission parameters of the isolators are outstandingly good: the non-linearity is < 0.01% and the temperature coefficient is < 50 ppm / °C.
The supply voltage range is 19-29 VDC, thus the isolators are insensitive to the supply voltage change.

Technical specifications
Safety data: The connection terminals of the supply voltages are isolated from each other, the isolation is in compliance with
EN 61010-1, pollution level: 2, measurement category: II
Intrinsical safety data:

• Certification: BKI 14 ATEX 0013
• Protection marking: II (1)G [Ex ia Ga] IIC / IIB (-20 °C < Ta < +50 °C); II (1)D [Ex ia Da] IIIC (-20 °C < Ta < +50 °C)

Safety data: Um: 250 Veff
Input parameters:

• Input signal: DC current or DC voltage
• Ranges: see the table on the previous page
• Input resistance (current input): 68 ohm
• Input resistance (voltage input): 1 Mohm
• Overdrive: 5%

Transmitter power supply:

• DT1300 ...18: 17.5 VDC @ 20 mA load
• DT1300 ...17: 16.5 VDC @ 20 mA load

Output parameters:

• Output type: DC current or DC voltage
• Ranges: see the table on the previous page
• Burden (current output): 800 ohm (max.) at 17.5 V transducer supply; 600 ohm (max.) at 16.5 V transducer supply
• Load (voltage output): 500 ohm
• Error: 0.05% @ Ta = 23 °C ±2 °C
• Non-linearity: 0.01% (max.)
• Temperature-coefficient: 50 ppm / °C (max.)
• Supply-voltage effect: practically zero
• Response time: 10 ms (10-90%)

Galvanic isolation:

• Operating isolation voltage:t 250 Veff (between the input, the output, and the supply voltage terminals)
• Test voltage: 2500 VDC

Power supply:

• Supply voltage: 19-29 VDC
• Consumption: 2.2 W

Ambient conditions:

• Operating temperature range: -20 - +50 °C
• Relative humidity: 90% (max., non-condensing)
• Place of installation: safe area, cabinet
• Installation: with 5 mm space, vertical position

Electromagnetic compatibility (EMC) accordance with the standard EN 61326-1

• Immunity: industrial area
• Noise emission: Group 1, Class B

General data:

• Housing: terminal assembly box, rail mounting on TS-35 rail, material: polyamide PA6.6
• Connection: plug-in screw terminal
• Connection cable: 0.25-1.5 mm2
• (max.)
• Dimensions: 12.5 × 99 × 115 mm (width × height × depth)
• Weight: 0.15 kg
• Protection: IP 20

Detailed information see in operating instructions. The Manufacturer maintains the right to change the technical data!
