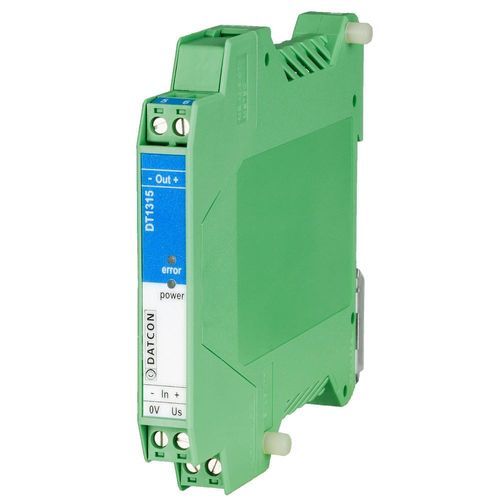

Intrinsically safe output isolator DT1315

signalintrinsically safeanalog output

Product features

• 0-20 mA / 4-20 mA / 0-10 V inputs
• 0-20 mA / 4-20 mA / 0-10 V outputs
• Non-linearity < 0.01%
• Temperature-coefficient < 50 ppm / °C
• 19-29 VDC supply voltage
• TS-35 rail mounting, 12.5 mm width
• 9 different types

Product description
The DT1315 … Intrinsically Safe Output Isolators provide signal transmission between the control equipment and signal sources located in the safe area and actuators, current-to-pressure converters, field process indicators, operate in zone 0, zone 1 potentionally explosive area. The units galvanically isolate the input, the output and the power supply.
The input signal may be 0-20 mA, 4-20 mA, 0-10 V, the intrinsically safe output signal also may be 0-20 mA, 4-20 mA, 0-10 V.
The transmission parameters of the isolators are outstandingly good: the non-linearity is < 0.01% and the temperature-coefficient is < 50 ppm / °C.
The supply voltage range is 19-29 VDC, thus the isolators are insensitive to the supply voltage change.

Safety data:The connection terminals of the supply voltages are isolated from each other, the isolation is in compliance with EN 61010-1, pollution level: 2, measurement category: II
Intrinsical safety data:

• Certification: BKI 15 ATEX 0022 X
• Protection marking: II (1)G [Ex ia Ga] IIC/IIB (-20 °C < Ta < +50 °C); II (1)G [Ex ia Da] IIIC (-20 °C < Ta < +50 °C)

Safety data: Um: 250 Veff
Input parameters:

• Input signal: DC current or DC voltage
• Ranges: see the table on the previous page
• Input resistance (current input): 68 ohm
• Input resistance (voltage input): 1 Mohm
• Overdrive: 5%

Output parameters:

• Output type: DC current or DC voltage
• Ranges: see the table on the previous page
• Burden (current output): 800 ohm (max.)
• Load (voltage output): 500 ohm
• Error: 0.05% @ Ta = 23 °C ±2 °C
• Non-linearity: 0.01% (max.)
• Temperature-coefficient: 50 ppm / °C (max.)
• Supply-voltage effect: practically zero
• Response time: 10 ms (10-90%)

Galvanic isolation:

• Operating isolation voltage:t 250 Veff (between the input, the output, and the supply voltage terminals)
• Test voltage: 2500 VDC

Power Supply:

• Supply voltage: 19-29 VDC
• Consumption: 1.6 W

Ambient conditions:

• Operating temperature range: -20 - +50 °C
• Relative humidity: 90% (max., non-condensing)
• Place of installation: safe area, cabinet
• Installation: with 5 mm space, vertical position

Electromagnetic compatibility (EMC) accordance with the standard EN 61326-1

• Immunity: industrial area
• Noise emission: Group 1, Class B

General data:

• Housing: terminal assembly box, rail mounting on TS-35 rail,
• material: polyamide PA6.6
• Connection: plug-in screw terminal
• Connection cable: 0.25-1.5 mm2 (max.)
• Dimensions: 12.5 × 99 × 115 mm (width × height × depth)
• Weight: 0.15 kg
• Protection: IP 20

Detailed information see in operating instructions. The Manufacturer maintains the right to change the technical data!
