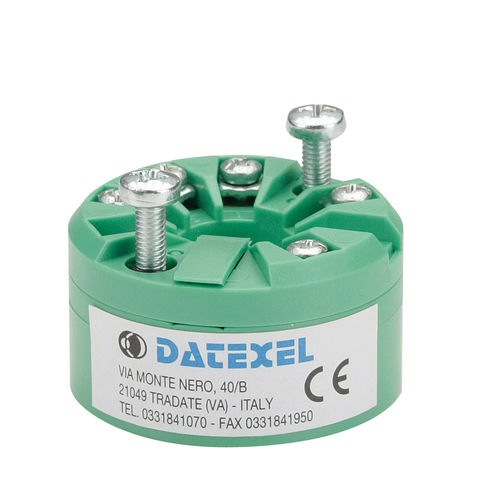

Probe head-mounted temperature transmitter DAT1066

RTD4-20 mAprocess

The isolated transmitter DAT 1066 IS can execute various features like measure and linearization of the temperature properties of RTDs sensors, transformation of linear resistance change and voltage indication emitted by a potentiometer. The DAT 1066 can measure and linearize the basic thermocouples with inner cold junction indemnification. The measured values are transformed in a 4÷20 mA current indication and ensures a greater precision and performance solidity in time as well as in temperature. Additionally, the DAT 1066 is programmed by a private PC with the PROSOFT software, developed by DATEXEL, which functions under the operative system "WindowsTM". Moreover, with the usage of the PROSOFT,it is possible to configure the transmitter to interface it with the majority of used sensors.
