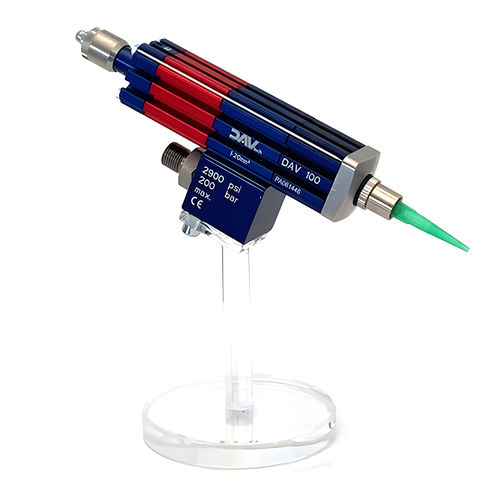

The metering valve DAV 100 is designed to dispense with the highest accuracy and repeatability greases and lubricants to NLGI 3 (1,000,000 mPa s). The chamber has a volumetric capacity adjustable from 1 to 20 mm ³ (0.001 to 0.02 cc) and with a special sensor is possible to check the emptying of the dosing chamber, for the highest control of the assembly process.
FIELDS OF APPLICATION:
> Grease metering
> Lubricants metering
> Volumetric dosing, reliable and constant
> Dosing independent of viscosity, pressure and temperature of the lubricant
> Pressure control system not necessary
> Dosing objectivable with a sensor
> Quantity dispensed easily adjustable and that can’t be changed accidentally using
the block screw
> Small and Light (170 g)
> Available on request in version for low feed pressure.
