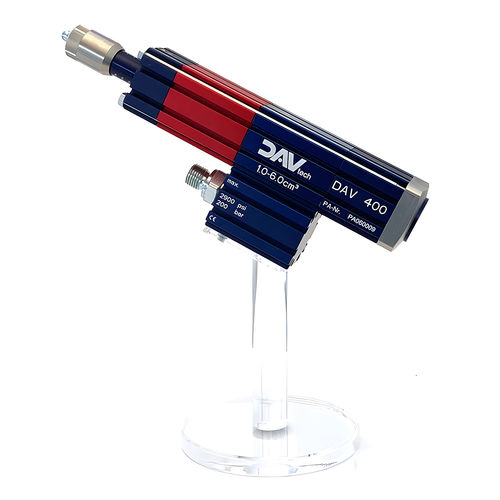

Volumetric dispensing valve DAV 400
precisiongreaselubricant

volumetric dispensing valve
volumetric dispensing valve
Add to favorites
Compare this product


Characteristics

Type
volumetric
Other characteristics
precision
Applications
grease, lubricant

Description

The metering valve DAV 400 is designed to dispense with the highest accuracy and repeatability greases and lubricants to NLGI 3 (1,000,000 mPa s). The chamber has a volumetric capacity adjustable from 1,0 to 6,0 cm³ and with a special sensor is possible to check the emptying of the dosing chamber, for the highest control of the assembly process. FIELDS OF APPLICATION: > Grease metering > Lubricants metering FEATURES: > Volumetric dosing, reliable and constant > Dosing independent of viscosity, pressure and temperature of the lubricant > Pressure control system not necessary > Dosing objectivable with a sensor > Quantity dispensed easily adjustable and that can’t be changed accidentally using the block screw > Pressure control system not needed
