The metering valve DAV 100 MAN is designed to dispense manually, but with the highest accuracy and repeatability greases and lubricants up to NLGI 3 (until 1,000,000 mPa s).

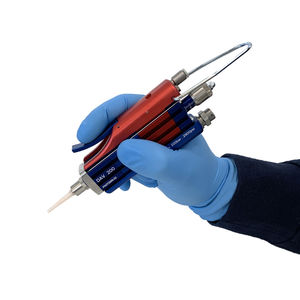

The ergonomic hand-grip make the valve simple to keep in hand and operate. The volumetric chamber has a capacity adjustable from 1 to 20 mm ³ (0.001 to 0.02 cc) and with a special sensor is possible to check the emptying of the dosing chamber, for the highest control of the assembly process.
FIELDS OF APPLICATION:
> Greases manual metering
> Lubricants manual metering
> Volumetric dosing, reliable and constant
> Dosing independent of viscosity, pressure and temperature of the lubricant
> Ergonomic, compact and lightweight (230 g)
> Dosing objectivable with a sensor
> Quantity dispensed easily adjustable and that can’t be changed accidentally using
the block screw
> Integrated pneumatic valve in the handgrip
> Available on request in version for low feed pressure.
