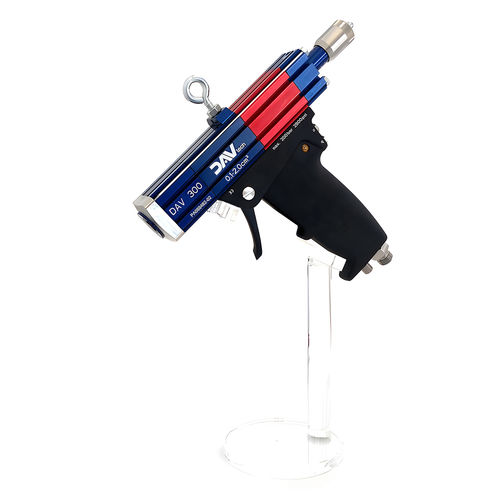

The metering valve DAV 300 MAN is designed to dispense manually, but with the highest accuracy and repeatability greases and lubricants up to NLGI 3 (until 1,000,000 mPa s). The ergonomic hand-grip make the valve simple to keep in hand and operate.It’s available with vertical (DAV 300 MAN-V) or horizontal (DAV 300 MAN-O) hand-grip. The volumetric chamber has a capacity adjustable from 0,1 to 2,0 cm ³ and with a special sensor is possible to check the emptying of the dosing chamber, for the highest control of the assembly process.
FIELDS OF APPLICATION:
> Greases manual metering
> Lubricants manual metering
> Volumetric dosing, reliable and constant
> Dosing independent of viscosity, pressure and temperature of the lubricant
> Ergonomic, compact and lightweight
> Chance to get with the hoses in the handle from under or behind (ver. MAN-O)
> Dosing objectivable with a sensor
> Quantity dispensed easily adjustable and that can’t be changed accidentally using the block screw
> Integrated pneumatic valve in the handgrip
> Is possible to hang up the valve with the supplied hook.
