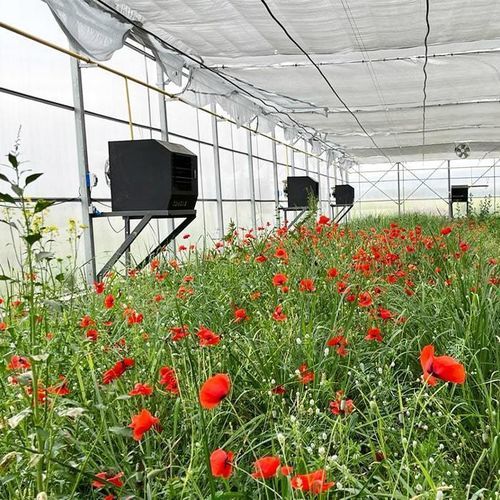

Stationary hot air generator Lodos 20

gasindustrial

Daygas offers efficient, economical, high-quality, and functional products that emphasize innovation and R&D, saving energy in the heating sector for end consumers. - Fast start-up. - Silent operation. - Low emission rate. - Cooling mode. - High level of safety. - Low energy consumption. - Safe gas valve system. - 5 stages with thermostats or remote control. - Fault and stage notification on the display screen. - Custom boiler design for increased productivity. Capacity: 20kW Gas Consumption: NG 1.90m³/h / LPG 1.41 kg/h Dimensions: 600h / 525L / 675w Weight: Net 39.00kg / Gross 43.00kg Operating Pressure: NG 21-55mbar / LPG 32-55mbar Heating Area: min 100m² / avg 125m² / max 150m² Heating Volume: min 300m³ / avg 375m³ / max 450m³ Sound Level in Empty Space: 50 d-BA Sound Level in Working Environment: 39 d-BA Air Flow: 3300m³ Electrical Connection (EU): 190-260 V / 50-60 Hz Gas Connection: G ¾’’ Homogeneous Heat Dissipation The Lodos hot air generators heat the area where direct convection is required with a technological burner structure that releases minimal residual gases. The heat generated in the blades with increased efficiency and an axial fan makes them the most homogeneous heat dissipation devices as the heat is transferred directly to the environment. Space - Economic Design Daygas Lodos hot air generators provide heating using the thermal energy of NG or LPG, either directly to the environment where the fan is installed or by blowing hot air through air ducts. They offer high efficiency and low energy consumption thanks to a specially designed boiler structure. The special design ensures the lowest operating noise with the boiler and body structure, making it quieter than its counterparts. Due to increased heating air, it is recommended to use hot air generators in enclosed spaces not exceeding a ceiling height of 5m for more effective and homogeneous heating. - Ability to operate hermetically and semi-hermetically. - Electrical components consist of non-flammable, heat-resistant silicone cables. - All metallic components are made of aluminum and silicon alloy resistant to high temperatures. Control Device Various scenarios and control elements are available for device management, including: - Remote control. - Pako switched manual control. - Integration via control card. - Automatic thermostat control. - Integration into automation systems (SCADA control). The variety of control scenarios offered as 5 different alternatives allows proper and appropriate management of the products. The most suitable control scenario is chosen by evaluating the on-site use of the devices and site conditions. Consequently, control with the right solution scenario facilitates both fuel savings and long-term, trouble-free service. Automation System Integration (SCADA Control) Devices can be integrated directly into building automation systems (BMS) via Modbus communication protocol through the RS485 port (internal), or if no BMS is available, device control can be fully automatic from a single center via an HMI touchscreen or PC. - Device operation scheduling on specified days and times. - Viewing system device error codes and identifying problematic devices, with memory storage. - Step and regional or individual modulation control of heating devices. - Functional controls such as real-time, daily, weekly, or monthly fuel consumption monitoring are advantages of the integrated automation system. Control Panel - Password protection. - 24/7 programmable function. - 128 x 64 graphic LCD screen. - Heat retention mode. - Anti-freeze protection device. - Computer communication port. - Possibility of automatic and manual control. - Option to connect an external temperature sensor. - Ability to control 8 independent zones and up to 32 devices in total. The control panel makes your work easier with many commands, from turning devices on and off during working days and at desired time intervals, to keeping the environment warm within a set temperature range for frost protection when the business is closed. Analog Thermostat The Daygas analog thermostat automatically turns off the device when the set temperature is reached, then when the ambient temperature drops below the desired value, the device automatically switches on at the maximum level and starts working again, saving fuel. Temperature Sensor - Anti-freeze protection mode. - Possibility of modulating control. - Temperature adjustment via the device. When your devices approach the programmed temperature with the Daygas temperature sensor, it saves fuel by reducing the modulation value of the device according to weather conditions. When the environment reaches the desired temperature, the device turns off automatically, then when it falls below the desired value, the device automatically turns on at the most appropriate temperature level for the environment and starts working again. Pako Switched Manual Control With the Pako switched control, manual step-adjustable control can be provided on the Pako. For more local solutions where there is no control panel or it is not necessary, devices can be operated at the desired level via the Pako switch. Heating elements can be controlled with independent step adjustment. Since the device is not powered in standby – in (0) position on the Pako, the device to be turned off goes to sleep after shutdown procedures, thus ensuring the longevity of the devices. Remote Control Daygas remote controls are simple-to-use control devices with 3 buttons and easy functions. With the Daygas remote, all device functions such as on/off, heat adjustment, and reset can be easily controlled. All Daygas products can be controlled remotely with a single remote. Technical Specifications / Features - Capacity: 20kW - Gas Consumption: NG 1.90m³/h / LPG 1.41 kg/h - Dimensions: 600h / 525L / 675w - Weight: Net 39.00kg / Gross 43.00kg - Operating Pressure: NG 21-55mbar / LPG 32-55mbar - Heating Area: min 100m² / avg 125m² / max 150m² - Heating Volume: min 300m³ / avg 375m³ / max 450m³ - Sound Level in Empty Space: 50 d-BA - Sound Level in Working Environment: 39 d-BA - Air Flow: 3300m³ - Electrical Connection (EU): 190-260 V / 50-60 Hz - Gas Connection: G ¾’’
