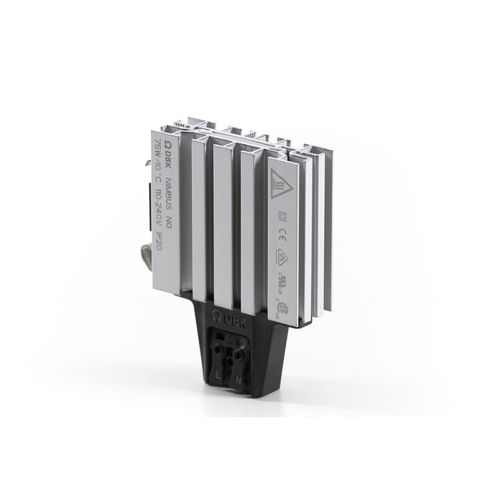

PTC heating element Nimbus NG
aluminumcompact

PTC heating element
PTC heating element
PTC heating element
Add to favorites
Compare this product


Characteristics

Type
PTC
Material
aluminum
Other characteristics
compact
Power

Max.: 75 kW (101.97 hp)

Min.: 20 kW (27.19 hp)

Description

Nimbus NG < 100W | PTC Convection Heater Compact PTC Convection Heater for moisture and frost protection in electrical cabinets & enclosures Power 20 - 75W Multi-voltage capability at 110 – 240V High safety and energy efficiency thanks to the PTC effect Worldwide approvals: CE (VDE, UL, CSA in preparation) PTC Convection Heater Nimbus NG < 100W PTC Convection Heaters of the Nimbus NG series are powerful air heaters for all kinds of electrical housings. They consist of a PTC heating element pressed into an aluminum profile, equipped with a terminal block and an optional touch protection. The convection heater is characterized by its extremely high performance combined with its low weight and compact design. The aluminum profile has been designed for optimal heat transfer through chimney effect and allows the heater to achieve up to 75W of heating power without any fan. Nimbus NG features a DIN clip with thermal insulation to the DIN rail, as well as a terminal block which allows for easy and space-saving integration into the customer application. PTC convection heaters are particularly often used in control cabinets, where they protect electronic components from moisture and frost. Nimbus NG < 100W is available in four different power versions from 20W to 75W. The heaters with short aluminum profile are suitable for a voltage range of 110 - 240V AC or DC (multi-voltage capable). PTC Convection Heaters come with all advantages of the PTC heating technology. Thanks to the PTC effect, the heating elements dynamically adjust their power without exceeding a maximum temperature.

Catalogs

No catalogs are available for this product.

See all of DBK Industrial Thermal management‘s catalogs

Other DBK Industrial Thermal management products

PTC Convection Heaters
