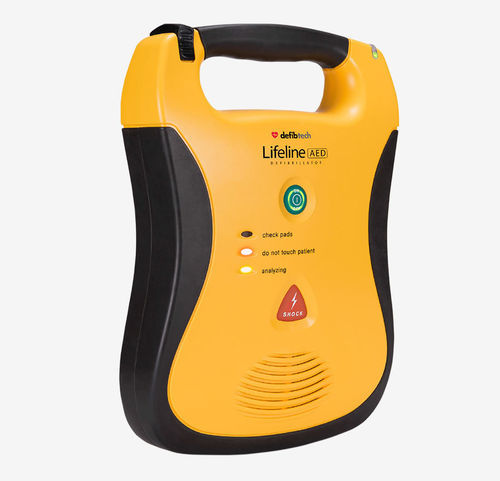

Emergency semi-automatic AED Lifeline AED

for public spacefor non-professionalsbiphasic

The AED that started it allThe original Defibtech AED includes all mission critical features necessary to provide the most advanced treatment for Sudden Cardiac Arrest. It is so simple and unintimidating to use that even non-medical personnel can effectively save lives. Available in Spanish.Simple to Use: Only two buttons on the unit: a green button to turn the unit on, and a red one to shock the patient if needed. The Lifeline AED is simple and intuitive.Upgradeable: As protocols change, your unit can be upgraded in the field by inserting a data card.Data Management: Data from the unit is recorded and easily retrieved using a data card.Clear Voice Prompts: A calm voice leads the user through the rescue, clearly and concisely stating each instruction, one step at a time. Brightly lit progress lights provide clear visual text guidance to reinforce voice instructions.Long Life Battery: Two long-life batteries are available: a 5-year battery (125 shocks or 8 hours continuous) or a 7-year battery (300 shocks or 16 hours continuous).Designed for the Real-World: Lightweight, fully integrated design with no lids or moving parts that would confuse or delay a rescue; a roomy handle big enough even for gloved hands, and rubberized surfaces for a sure grip in an emergency.Active Status Indicator: The actively illuminated status indicator shows unit readiness, to ensure that the unit is ready to perform anytime, every time.Highly Visible: The highly visible yellow color makes the unit easy to locate and deploy.Award-Winning Ergonomic Design: Compact, portable and lightweight, the Lifeline AED has won numerous awards for design and innovation. It was even displayed at the Museum of Modern Art in New York City as an example of innovative design!Training Companion: The Lifeline AED has a training version: the Defibtech Trainer AED, which mimics the Lifeline AED in form and function, except that all rubberized exterior surfaces are red instead of black, to clearly distinguish the unit as a training device.Durable: Manufactured to withstand dust and water ingress; tested to military standards for shock and vibration; jet aircraft and helicopter tested.Safe and Effective: Uses biphasic technology, a clinically proven waveform and algorithm to deliver shocks and save lives. This is one of the most widely used impedance compensated waveforms with extensive clinical experience and success in thousands of defibrillators worldwide.Technical SpecificationsType: Semi-automatic external defibrillatorModel: DDU-100A, DDU-100EWaveform: Biphasic Truncated Exponential (Impedance compensated)Energy: Adult: 150 Joules; Child/Infant: 50 Joules (Nominal into 50 Ohm load)Charge Time: 4 seconds or less (from shock advised)Voice Prompts: Extensive voice prompts guide user through operationCPR Pacing: MetronomeControls: Lighted On/Off button, Lighted Shock buttonIndicators: "check pads", "do not touch patient", "analyzing", "AED Status LED"Rescue Protocol: AHA / ERC (default); supports protocol updatesPatient Analysis: Automatically evaluates patient impedance for proper pad contact; monitors signal quality and analyzes patient ECG for shockable/non-shockable rhythmsSensitivity/Specificity: Meets or exceeds IEC-60601-2-4 requirements; meets AAMI DF80 requirements and AHA recommendationsBattery Pack: Two options:Model DBP-2800: 15VDC, 2800 mAh, 300 shocks or 16 hours continuous operation, 7 years standby lifeModel DBP-1400: 15VDC, 1400 mAh, 125 shocks or 8 hours continuous operation, 5 years standby lifeType: Lithium/Manganese Dioxide, Disposable, recyclable, non-rechargeable. Low Battery Indicators: Visible and Audible.Self Tests: Automatic daily, weekly, monthly and quarterly circuitry tests; system integrity test on battery insertion; pads preconnected tested daily; user-initiated unit and battery pack system test; visual and audible indication of unit status.Defibrillation/Monitoring Pads: Adult: DDP-100; Child/Infant: DDP-200P. Surface Area: Adult: 16 in² (103 cm²); Child/Infant: 7.75 in² (50 cm²). Type: Pre-connected, single-use, non-polarized, disposable, self-adhesive electrodes with cable and connector.Event Documentation: Critical ECG segments and rescue event parameters are recorded and can be downloaded to a removable data card. PC-Based Event Review: ECG with event tag display, and audio playback when available. Removable Storage: Up to 12 hours of ECG and event data storage (no audio option) or up to 1 hour and 40 minutes of audio (audio option).Environmental: Operating temperature: 0 to 50°C (32 to 122°F); Standby: 0 to 50°C (32 to 122°F); Relative Humidity: 5%-95% (non-condensing); Altitude: -500 to 15,000 ft (-150 to 4500 m); Vibration: Ground, Helicopter, Jet Aircraft; Shock/Drop Abuse Tolerance: 1 meter, any edge, corner, or surface, in standby mode; Sealing/Water Resistance: IEC 60529 class IP54; Dust Protected, Splash Proof; ESD: EN 61000-4-2; EMC (Emission): EN 55011 Class B Group 1 and FCC Part 15; EMC (Immunity): EN 61000-4-3 (20V/m).Physical: Size: 8.5 x 11.8 x 2.7 Inches (22 x 30 x 7 cm); Weight (Approximate): With DBP-1400: 4.2 lbs (1.9 kg); With DBP-2800: 4.4 lbs (2.0 kg).Indications: For use on victims of sudden cardiac arrest (SCA) who are unconscious and unresponsive, not breathing or not breathing normally. Use adult pads for adults; for patients under 8 years old or weighing less than 55 lbs (25 kg), use child/infant pads if available.Contraindications: Should not be used if the victim is responsive or conscious.Warnings: Hazardous electrical output; possible fire or explosion in presence of flammable gases; improper maintenance can cause malfunction; do not touch the patient during defibrillation; pads are intended for one-time use only; CPR during analysis can cause incorrect or delayed diagnosis; even if defibrillation occurs, survival is not guaranteed.Accessories:Adult Defibrillation Pads Package (DDP-100): For use with Lifeline AED and Lifeline AUTO. For adult use only (8 years or older). Two-year duration.Pediatric Defibrillation Pads Package (DDP-200P): For use with Lifeline AED and Lifeline AUTO. For patients less than 8 years of age. Two-year duration.Five-year replacement battery pack (DCF-200): Standby life of 5 years, 125 shocks, or 8 hours of continuous operating time.Seven-year replacement battery pack (DCF-210): Standby life of 7 years, 300 shocks, or 16 hours of continuous operating time.9V Lithium Battery (DAC-410): Powers the Active Status Indicator. Battery life is approximately one year.Medium Data Card (6-hours, no audio) (DDC-6-AA): Up to 6 hours of ECG/event data storage.High Capacity Data Card (12-hours, no audio) (DDC-12-AA): Up to 12 hours of ECG/event data storage.Medium Data Card (50-minutes, audio) (DDC-50AE-AA): Up to 50 minutes of event audio and ECG data storage.High Capacity Data Card (100-minutes, audio) (DDC-100AE-AA): Up to 100 minutes of event audio and ECG data storage.Soft Carrying Case (DAC-100): Designed to hold a Lifeline AED or Lifeline AUTO, extra pads, an extra battery, and other accessories as needed. Made of ballistic nylon with a carrying handle and highly reflective safety strip.Characteristics / Technical SpecificationsType: Semi-automatic external defibrillatorModel: DDU-100A, DDU-100EWaveform: Biphasic Truncated ExponentialEnergy: Adult 150 Joules, Child/Infant 50 JoulesCharge Time: 4 seconds or lessBattery: 5-year or 7-year optionsWeight: 1.9-2.0 kgSize: 22 x 30 x 7 cmWater Resistance: IP54Event Documentation: Up to 12 hours ECG/event dataOperating Temperature: 0 to 50°CAltitude: -500 to 15,000 ft
