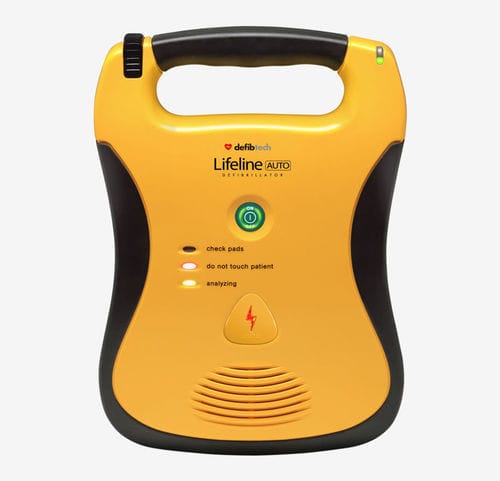

Emergency fully automatic AED Lifeline AUTO AED

for public spacewith CPR helpbiphasic

The Lifeline AUTO AED is a fully automatic defibrillator designed to analyze heart rhythm and automatically deliver a shock – without intervention – if needed.Simple to Use: Turn the unit on and the AUTO will do the rest. If a shock is needed, it will automatically shock the patient. Protocols can be upgraded in the field via data card. Data from the unit is recorded and easily retrieved using a data card.Clear Voice Prompts: A calm voice leads the user through the rescue, clearly and concisely stating each instruction, one step at a time. Brightly lit progress lights provide clear visual text guidance to reinforce voice instructions.Designed for the Real-World: Lightweight, fully integrated design with no lids or moving parts that would confuse or delay a rescue; a roomy handle big enough even for gloved hands, and rubberized surfaces to ensure a sure grip in an emergency.Active Status Indicator: The actively illuminated status indicator shows unit readiness, to ensure that the unit is ready to perform anytime, every time.Highly Visible: The highly visible yellow color makes the unit easy to locate and deploy in emergencies.Award-Winning Ergonomic Design: Compact, portable and lightweight Defibtech AEDs have won numerous awards for design and innovation.Durable: Manufactured to withstand dust and water ingress; tested to military standards for shock and vibration; jet aircraft and helicopter tested.Safe and Effective: Uses biphasic technology, a clinically proven waveform and algorithm to deliver shocks and save lives. This is one of the most widely used impedance compensated waveforms with extensive clinical experience and success in thousands of defibrillators worldwide.Long Life Battery: Two long-life batteries are available: a 5-year battery (125 shocks or 8 hours continuous) or a 7-year battery (300 shocks or 16 hours continuous).Technical Specifications:Type: Fully-automatic external defibrillatorModel: DDU-120A, DDU-120EWaveform: Biphasic Truncated Exponential (Impedance compensated)Energy: Adult: 150 Joules; Child/Infant: 50 Joules (Nominal into 50 Ohm load)Charge Time: 4 seconds or less (from shock advised)Voice Prompts: Extensive voice prompts guide user through operationCPR Pacing: MetronomeControls: Lighted On/Off buttonIndicators: "check pads", "do not touch patient", "analyzing", armed for shock, "AED Status LED"Rescue Protocol: AHA / ERC (default); supports protocol updatesPatient Analysis System:Automatically evaluates patient impedance for proper pad contactMonitors signal quality and analyzes patient ECG for shockable/non‑shockable rhythmsSensitivity/Specificity: Meets or exceeds IEC-60601-2-4 requirements; meets AAMI DF80 requirements and AHA recommendationsBattery Pack:Model DBP-2800: 15VDC, 2800 mAh, 300 shocks or 16 hours continuous operation, 7 years standby lifeModel DBP-1400: 15VDC, 1400 mAh, 125 shocks or 8 hours continuous operation, 5 years standby lifeType: Lithium/Manganese Dioxide, Disposable, recyclable, non-rechargeableLow Battery Indicators: Visible, AudibleSelf Tests:Automatic daily, weekly, monthly and quarterly circuitry testsSystem integrity test on battery insertionPads preconnected tested dailyUser-initiated unit and battery pack system testStatus Screen: Visual and audible indication of unit statusDefibrillation / Monitoring Pads:Adult: DDP-100; Child/Infant: DDP-200PSurface Area: Adult: 16 in² (103 cm²); Child/Infant: 7.75 in² (50 cm²)Type: Pre-connected, single-use, non-polarized, disposable, self-adhesive electrodes with cable and connectorEvent Documentation:Critical ECG segments and rescue event parameters are recorded and can be downloaded to a removable data cardPC-Based Event Review: ECG with event tag display, and audio playback when availableRemovable Storage: (optional) Up to 12 hours of ECG and event data storage (no audio option) or up to 1 hour and 40 minutes of audio (audio option)Environmental:Operating Temperature: 0 to 50°C (32 to 122°F)One Hour Operating Temperature Limit (extreme cold): –20°C (–4°F)Standby: 0 to 50°C (32 to 122°F)Relative Humidity: 5%-95% (non-condensing)Altitude: -500 to 15,000 ft (-150 to 4500 m)Vibration: Ground, Helicopter, Jet Aircraft (tested to standards)Shock/Drop Abuse Tolerance: 1 meter, any edge, corner, or surface, in standby modeSealing/Water Resistance: IEC 60529 class IP54; Dust Protected, Splash Proof (battery pack installed)ESD: EN 61000-4-2: (15kV or direct contact up to 8kV)EMC (Emission): EN 55011 Class B Group 1 and FCC Part 15EMC (Immunity): EN 61000-4-3 (20V/m)Physical:Size: 8.5 x 11.8 x 2.7 Inches (22 x 30 x 7 cm)Weight (Approximate): With DBP-1400: 4.2 lbs (1.9 kg); With DBP-2800: 4.4 lbs (2.0 kg)Brief Summary of Indications, Contraindications and Other Important Safety Information:Indications: For use on victims of sudden cardiac arrest (SCA) who are unconscious and unresponsive, not breathing or not breathing normally. Use adult pads for adults; for patients under 8 years old or weighing less than 55 lbs (25 kg), use child/infant pads if available.Contraindications: Should not be used if the victim is responsive or conscious.Other Information: Do not delay therapy to determine exact age or weight. If pediatric pads are not available, use adult pads as shown for a child/infant.Potential Adverse Health Effects: Failure to identify shockable arrhythmia, failure to deliver a shock, inappropriate energy, myocardial damage, fire hazard, incorrect shock, bystander shock, interaction with pacemakers, skin burns, allergic dermatitis, minor skin rash.Cautions: Follow all battery and pad labeling instructions. Use and store only within specified environmental conditions.Warnings: Hazardous electrical output, possible fire or explosion, improper maintenance, do not open sealed pads package until use, do not touch patient during defibrillation, pads are single-use, CPR during analysis can cause incorrect diagnosis, self-tests do not guarantee performance, survival is not guaranteed even if defibrillation occurs.Federal Law: Restricts this device to sale by or on the order of a physician.Accessories:Adult Defibrillation Pads Package (DDP-100)Pediatric Defibrillation Pads Package (DDP-200P)Five-year replacement battery pack (DCF-200, DBP-1400)Seven-year replacement battery pack (DCF-210, DBP-2800)9V Lithium Battery (DAC-410)Medium Data Card (6-hours, no audio) (DDC-6-AA)High Capacity Data Card (12-hours, no audio) (DDC-12-AA)Medium Data Card (50-minutes, audio) (DDC-50AE-AA)High Capacity Data Card (100-minutes, audio) (DDC-100AE-AA)Soft Carrying Case (DAC-100)Characteristics / Technical Specifications:Type: Fully-automatic external defibrillatorModel: DDU-120A, DDU-120EWaveform: Biphasic Truncated ExponentialEnergy: Adult: 150 Joules; Child/Infant: 50 JoulesCharge Time: 4 seconds or lessBattery: 5-year (DBP-1400) or 7-year (DBP-2800)Weight: 1.9-2.0 kgSize: 22 x 30 x 7 cmWater Resistance: IP54Operating Temperature: 0 to 50°CAltitude: -150 to 4500 m
