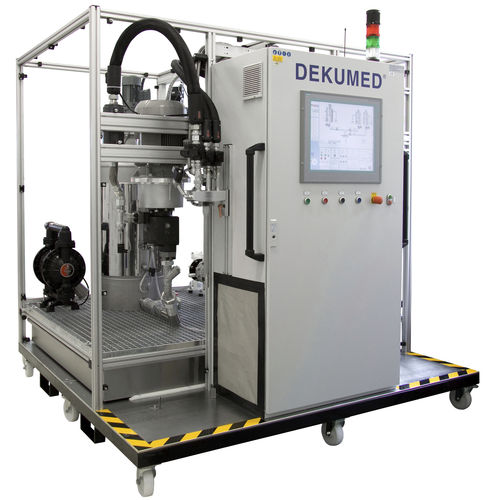

Resin mixer-dispenser UNIDOS 300 Infusion 3C
pistonmulti-component

resin mixer-dispenser
resin mixer-dispenser
Add to favorites
Compare this product


Characteristics

Product
resin
Type
piston
Other characteristics
multi-component

Description

3 C-Meter Mix and Dispense machine for automatic infusion application Technical Data • Steel frame • Zinc plated machine platform • Switch cabinet with controller, electronics and pneumatics • Pressure containers for A-, B1- and B2- component • Low level detection of containers • Drip pan • Axial Piston Pump, hardener pump with magnetic drive link • Gear flow -/ Spindle flow meter • AC-motors • Dispence pressure control with alarm • Electronic adjustment of dispense rate, max. 20 litres/min • Electronic adjustment of mixing ratio • Height adjustable 3-component mixing block • Electro mechanical metering valves at mixing block with non return valves • Usage of disposable plastic mixing sections • Recirculation mixing block - containers • Component purge • Wired remote control for start-stop, emergency off
