SPRAY CHARACTERISTICS
Uniform distribution of droplets in a solid cone spray pattern.
Droplet size is larger than most hollow cone nozzles of equal capacity.
Impact of spray is generally greater with narrower spray angles assuming the same flow rate. Pressure increases affect spray angle.
CONSTRUCTION AND MATERIALS

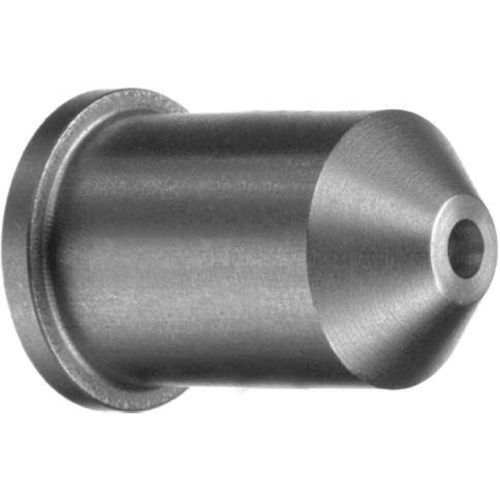

One piece body with pressed in cross-milled core which is removable.
Core imparts the necessary swirl to produce a solid cone spray pattern.
Available in 30°, 60°, 90° and 120° spray angles (see chart).
Flanged design for use with standard bodies and caps.
Body thread sizes are Male BSPT and Female BSPP.
Standard flanged filters can be used.
Available in Brass or Stainless Steel as standard.
Other materials available on a special order.
ORDER EXAMPLE
BR 4-120° Brass = Tip Only.
1/4" BFM (Male) 112-60° Stainless Steel = Complete Assembly.
Maximum Recommended Pressure: 35 Bar.G.
