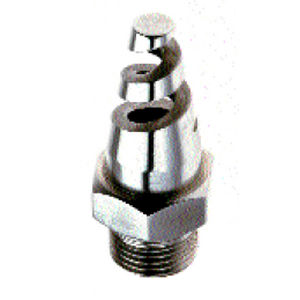

Spiral nozzle MCN for liquidssprayfull-cone
Add to favorites
Compare this product
Characteristics
- Fluid
- for liquids
- Function
- spray
- Stream
- full-cone
- Material
- stainless steel, brass
- Applications
- for the paper industry
- Spray angle
- 60°, 120°
- Other characteristics
- compact, NPT, male, spiral
- Orifice diameter
Max.: 38.1 mm
(1.5 in)Min.: 2.4 mm
(0.094 in)- Flow
Max.: 484 l/min
(127.86 us gal/min)Min.: 2.26 l/min
(0.6 us gal/min)- Pressure
Max.: 5 bar
(72.5 psi)Min.: 0.5 bar
(7.3 psi)
Description
The type MCN is a cone spray nozzle available in spray angles from 60º - 120º. This compact nozzle permits the maximum liquid throughput for a given pipe size, with the large free passageway minimizing clogging. Nozzles available in thread sizes of 1/8” to 1” BSPT or NPT. Larger sizes available upon request.
Catalogs
MCN
1 Pages
