washing nozzle / for liquids / multidrop / stainless steel
CIP21 series

Add to MyDirectIndustry favorites
Compare this product Don’t compare this product
washing nozzle / for liquids / multidrop / stainless steel washing nozzle / for liquids / multidrop / stainless steel - CIP21 series
{{requestButtons}}

Characteristics

  • Function:

    washing

  • Media:

    for liquids

  • Stream:

    multidrop

  • Material:

    stainless steel, brass

  • Other characteristics:

    screw-in

Description

Industrial Spray Nozzles - Cleaning in Place
SPRAY CHARACTERISTICS

Relatively uniform distribution at all pressures.
Available in a range of flow capacities.
Produces a full spray pattern from a multiple orifice body, with a 360° spherical cover for tanks up to 3 metres in diameter.

CONSTRUCTION AND MATERIALS

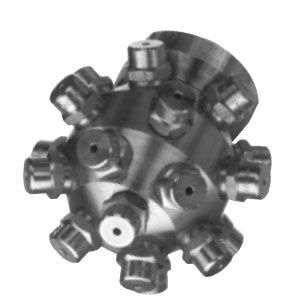

Manufactured with a 1 1/2" BSPT Female threaded body fitted with 21 removable solid cone spray nozzles.
Made in Stainless Steel, Gunmetal/Brass as standard.
Other nozzles can be fitted to give non-standard spray patterns.
Other materials available to special order.

ORDER EXAMPLE

1 1/ 2" CIP21 - 500 Stainless Steel.

Approx. weight of assembly = 1.5kg

Maximum Recommended Pressure

35 Bar.G. (Metal).
