washing nozzle / for liquids / multidrop / stainless steel
CIP 15 series

Add to MyDirectIndustry favorites
Compare this product Don’t compare this product

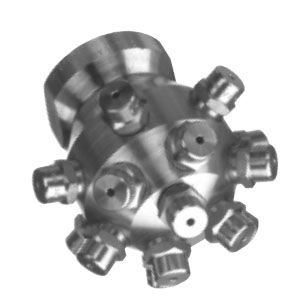

washing nozzle / for liquids / multidrop / stainless steel washing nozzle / for liquids / multidrop / stainless steel - CIP 15 series
{{requestButtons}}

Characteristics

  • Function:

    washing

  • Media:

    for liquids

  • Stream:

    multidrop

  • Material:

    stainless steel, brass

  • Other characteristics:

    screw-in

Description

SPRAY CHARACTERISTICS

Relatively uniform distribution at all pressures.
Available in a range of flow capacities.
The CIP15 is used in place of a standard full cone nozzle, where finer atomization than a single nozzle might normally provide is required.
Normal spray angle is 230°
For full 360° coverage with type CIP15 the assembly is identified with the suffix 'FC'.*

CONSTRUCTION AND MATERIALS

Manufactured with a 1 1/2" BSPT Female threaded body - fitted with 15 removable solid cone spray nozzles.
Made in Stainless Steel, Gunmetal/Brass as standard.
Other nozzles can be fitted to give non-standard spray patterns.
Other material available to special order.

ORDER EXAMPLE

1 1/2" CIP 15-150 Stainless Steel.

Approx. weight of assembly = 1.34kg

Maximum Recommended Pressure:

35 Bar.G. (Metal).
