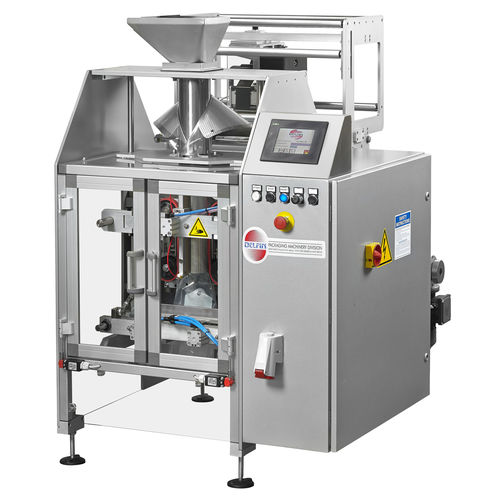

Vertical bagging machine COLORADO

VFFSPLC-controlled

Vertical form, fill and seal machine, model COLORADO PP/PE , controlled by PLC. General technical characteristics: Main Structure made of varnished steel; • Electrical cabinet is fixed to the machine; • Motorized film-reel unwinding system; • Motorized film-pulling unit; • Self-centering reel holding unit; • Sealing system with 3 independent movements, for a better sealing and for the prevention of the knife breakage; • Bag length measuring system: Encoder • End of film automatic detection system with automatic machine pause when the film-reel is over; • Sealing bar safety device; • Impulse Sealing System: with sealing band (PE) or Hot Bar (PP); • Air cooling system in the sealing area; • Interchangeable forming tube having. external diameter of max 170mm; • Max. bag length: 450mm; • Max. empty bag width: 270 mm; • Max film reel width: 560mm. • PLC control system. • CE Certification. • Power Supply: 380V-50HZ-3 phase+N-Ground
