Automatic packaging machine verticalbag
Add to favorites
Compare this product
Characteristics
- Operational mode
- automatic
- Type
- vertical
- Applications
- bag
Description

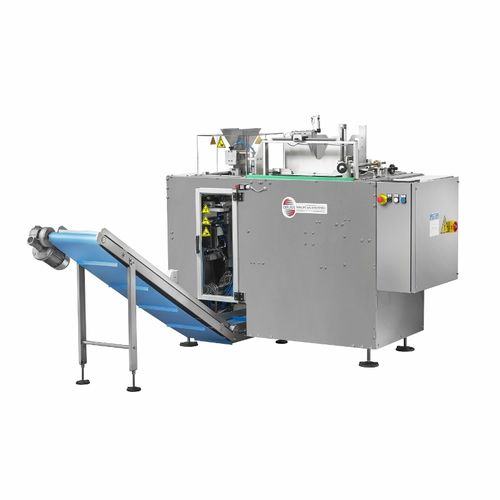

Vertical pouch machine fremont - controlled by Plc Siemens
Pouch Machine mod. Fremont to work with pre-formed bags , controlled by PLC
Main features:
-Painted steel RAL 9006 main frame;
-Control panel incorporated to the machine;
-Adjustable bags stacker in relation to the dimensions of the bags
-Suction cups device suitable to pick and drive one bag at a time from the stacker and feed it to the product filling zone;
-Opening of the bag obtained through suction cups and clumps to sustain the bag;
-Pneumatic moving basket to discharge the product inside the bag;
-Sealing system : by hot bar.
-Minimum dimension of the bag: 100 x 100 mm
-Maximum dimension of the bag: width 300 mm x length 430 mm
-Voltage: 400Vac-3Ph+N-50Hz
-Electric power installed: 2,5 Kw
-Compressed air 6 Atm
-Pneumatic plant: Festo Pneumatic
-EC Standard certified
