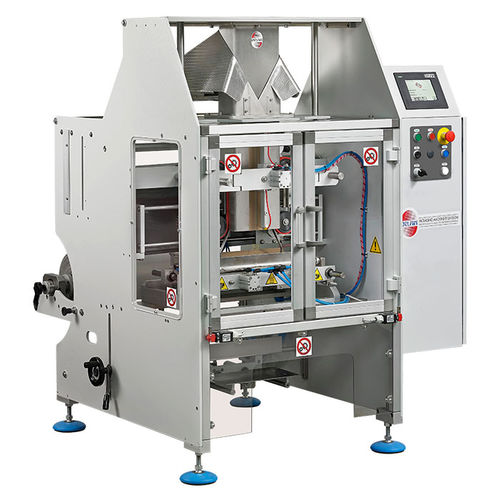

Vertical bagging machine COLORADO 660

VFFSPLC-controlled

• Main Structure made of varnished steel; • Electrical cabinet is fixed to the machine; • Motorized film-reel unwinding system;  • Motorized film-pulling unit; • Self-centering reel holding unit; • Sealing system with 3 independent movements, for a better sealing and for the prevention of the knife breakage; • Bag length measuring system: Encoder • End of film automatic detection system with automatic machine pause when the film-reel is over; • Sealing bar safety device; • Sealing System: Hot bar (PP) or Impulse Sealing (PE); • Interchangeable forming tube having. external diameter of max 190mm;  • Max. bag length: 300mm (600 mm by double sealing cycle); • Max. empty bag width: 300 mm; • Max width film reel: 650mm; • PLC control system; • CE Certification; • Power Supply: 400V-50HZ-3 phase+N-Ground;
