- Power Transmission - Mechanical components
- Mechanical Transmission
- Drum clutch
- DELLNER BUBENZER Germany GmbH

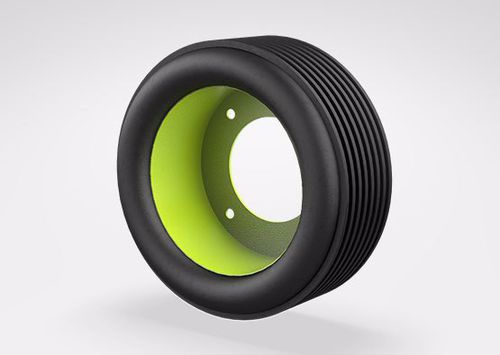

Drum clutch FKR seriespneumatic
Add to favorites
Compare this product
Characteristics
- Type
- drum
- Operation
- pneumatic
- Torque
Max.: 9,400 Nm
(6,933.084203 ft.lb)Min.: 174 Nm
(128.335814 ft.lb)- Rotational speed
900 rpm, 1,100 rpm, 1,800 rpm
(5,654.8668 rad.min-1, 6,911.5038 rad.min-1, 11,309.7336 rad.min-1)
Description
The FKR is often referred to as a coupling, as its expanding neoprene rubber facing engages the interior diameter of the drum directly. The resulting friction generates significant torque within a small package. This element also offers the advantages of both a flexible and disconnect coupling in applications where there is no speed differential between the driving and driven components during engagement
MAIN FEATURES
Integrated reinforced neoprene rubber facing
Interchangeability: Eaton Airflex ®ER Units
OPTIONS
6 Different Sizes
Catalogs
No catalogs are available for this product.
See all of DELLNER BUBENZER Germany GmbH‘s catalogsOther DELLNER BUBENZER Germany GmbH products
Pneumatic Drum Clutches & Brakes
