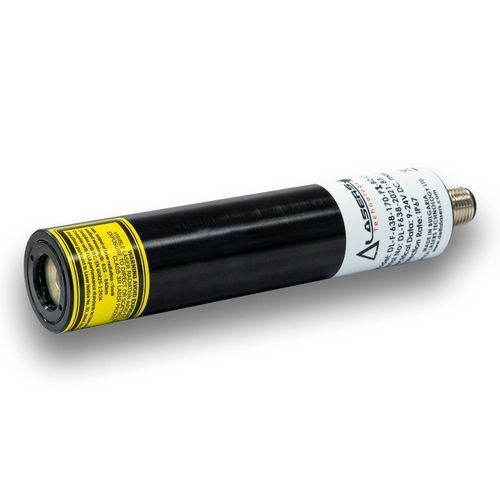

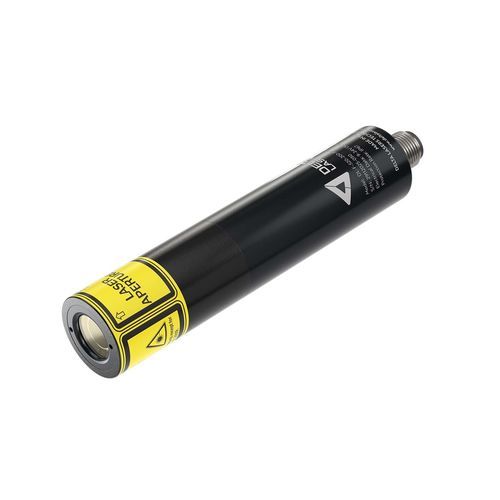

Alignment positioning laser Delta F

blueredgreen

Product overview
The Delta F Series positioning laser line module delivers precise alignment and reliable positioning for part processing and industrial automation. Available in red, green and blue diodes, the compact Ø25 mm laser head provides fixed-focus line, cross or spot projections with optical outputs from 1 mW up to 200 mW. The module runs on 9–24 V DC and features an anodized aluminum cylindrical housing with an aluminum mounting bracket for efficient heat dissipation and continuous operation in demanding environments.

Key features

• Compact Ø25 mm design, IP67 rated
• Electrically insulated housing
• Constant output power options
• Estimated laser lifetime: 30,000 h
• 2-year warranty
• Available projection types: Line, Cross, Spot
• Line profiles: Homogeneous or Gaussian
• Projection angles: 5° to 110° (homogeneous line)

Product specifications
Output laser power: 1 mW – 200 mW (examples: 5, 10, 20, 35, 50, 80, 90, 100, 120, 170, 200 mW)
Wavelengths: 445 nm, 450 nm, 505 nm, 515 nm, 520 nm, 635 nm, 637 nm, 638 nm (Red/Green/Blue)
Laser class: 1, 2, 2M, 3R
Technology: Diode laser
Operating voltage: 9–24 V DC
Operating temperature: -10° to +60° C
Storage temperature: -40° to +85° C
Electrical protection: Polarity reversal protection
Ingress protection: IP67
Impact protection: IK10
Mounting: Standard and custom mounting solutions available

Technical specifications
Head diameter: Ø25 mm; Dimensions: Ø25 x 109 mm; Weight: 105 g
Focus: Fixed focus
Projection profiles: Point (B1), Line (B2), Cross (B3)
Line optics: Gaussian (CL) 90°–110°; Precise homogeneous line optics (PL) with fan angles 30°, 45°, 60°, 90°, 110° – suitable for machine vision and high-speed inspection
Digital modulation (PWM): 0V–3.3V/5V/Vin; 5 kHz available on request
Housing: Anodized aluminum cylindrical housing with aluminum bracket
Warranty: 2 years; Estimated lifetime: 30,000 h
