Alignment positioning laser Delta VX

visiblemultiple-wavelengthblue

Product Overview

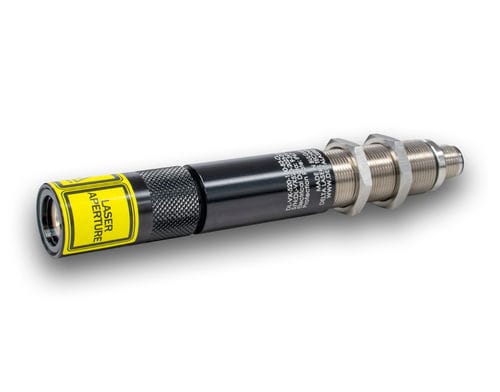

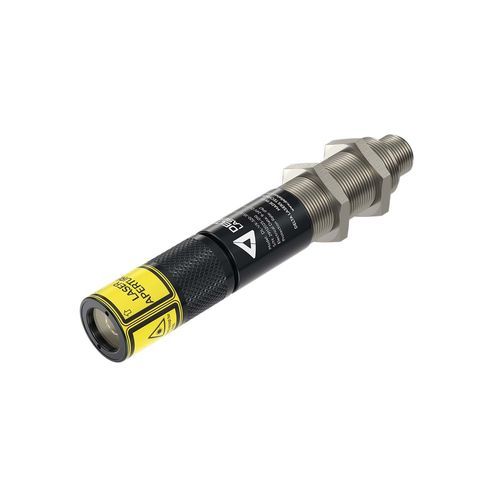

The Delta VX Series is an industrial, focusable positioning laser for precise alignment, part processing and machine vision tasks. Available in violet, blue, green and red wavelengths with output power options up to 150 mW. The compact Ø20 mm anodized aluminium housing includes an M18x1 mounting thread for straightforward installation and fine adjustment. Projection modes include point, Gaussian or homogeneous line, DOE multi-line patterns and cross projections. The unit is designed for IP67 protection and vibration-resistant operation. Input voltage: 9–24 V DC.

Key Features

• Compact Ø20 mm housing
• IP67 ingress protection (dust and water resistant)
• Electrically insulated enclosure
• Manual focus (fixed-focus variants available)
• Constant output power
• Typical lifetime >20,000 h
• 2 years warranty
• Projection modes: Spot, Line, Cross; supports DOE multi-line patterns

Product Specifications
Output Laser Power: 5 mW, 10 mW, 20 mW, 35 mW, 50 mW, 80 mW, 90 mW, 100 mW, 120 mW, 150 mW
Wavelengths: 405 nm, 445 nm, 450 nm, 520 nm, 635 nm, 637 nm, 638 nm
Laser Class: 1, 2, 2M, 3R
Colors: Violet, Blue, Green, Red
Technology: Diode laser
Operating temperature: -10 °C to +60 °C
Storage temperature: -40 °C to +85 °C
Input voltage: 9–24 V DC
Electrical protection: Polarity reversal protection
Projection profiles: Point (B1), Line (B2), Cross (B3)
Gaussian line: CL 90°–110°
Homogeneous line (fan angles): 20°, 30°, 45°, 60°, 90°, 110°
Focus: Manual (MF) or Fixed (F)
Digital modulation (PWM): 0 V–3.3 V/5 V/Vin, 5 kHz (on request)
Housing: Anodized aluminium, M18x1 thread
Dimensions & weight: Ø20 x 146 mm, 100 g
Protection rating: IP67
Impact rating: IK10
Mounting: M18x1 fine-adjustable thread; standard and customised mounting solutions available

Technical specifications

• Model family: Delta VX Series
• Housing diameter: Ø20 mm
• Housing material: Anodized aluminium
• Mounting thread: M18x1 (fine-adjustable)
• Available output powers: 5 mW to 150 mW (multiple steps)
• Available wavelengths: 405, 445, 450, 520, 635, 637, 638 nm
• Projection types: Point, Gaussian line, Homogeneous line, Cross, DOE patterns
• Focus options: Manual or fixed
• Modulation: PWM 0 V–3.3 V/5 V/Vin (5 kHz on request)
• Operating temperature range: -10 °C to +60 °C
• Storage temperature range: -40 °C to +85 °C
• Ingress protection: IP67
• Impact protection: IK10
• Dimensions & weight: Ø20 x 146 mm, 100 g
• Electrical input: 9–24 V DC with polarity reversal protection
• Typical lifetime: >20,000 h
