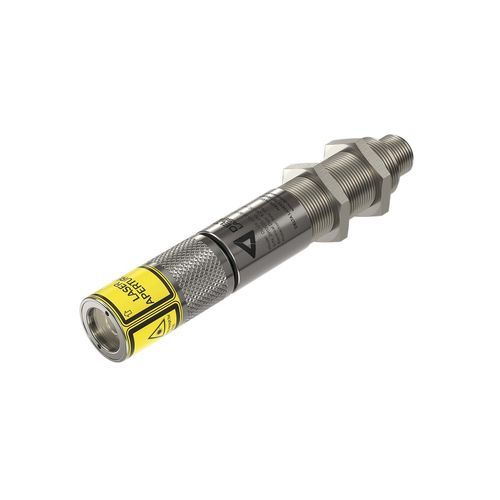

Continuous wave laser diode module Delta VXS

CWsolid-statered

Overview
The Delta VXS Series diode lasers are housed in a stainless steel industrial enclosure with manual adjustable focus. Designed for integration into imaging systems, sensors and processing machinery, they offer selectable projection profiles (spot, line, cross) with narrow beam width and tool-free readjustment after projection distance changes. Available wavelengths include green, red and IR; optical output power ranges from 1 mW up to 200 mW. Input voltage is 9–24 V DC. Units feature IP67 protection, vibration-resistant mechanics, precision optics and a rated lifetime above 20,000 hours.

Key features

• Optical output up to 200 mW
• Wavelengths: 505–808 nm (green, red, IR)
• Stainless steel housing with IP67 protection
• Manual focus, readjustable without tools
• Electrically insulated housing option
• Constant output power and PWM modulation available
• Expected lifetime > 20,000 h; 2-year warranty
• Projection profiles: Spot, Line, Cross

Technical specifications

• Model family: Delta VXS Series
• Housing material: Stainless steel (electrically insulated option)
• Protection rating: IP67
• Impact rating: IK10
• Projection profiles: Point / Line / Cross
• Output power options: 5, 10, 20, 35, 50, 80, 90, 100, 120, 170, 200 mW
• Wavelength options: 505, 515, 520, 635, 637, 638, 640, 808 nm
• Laser classes: Class 3A, Class 3R
• Focus: Manual, readjustable without tools
• Line profiles: Gaussian (90°–110°) and homogeneous with fan angles 20°/30°/45°/60°/90°/110°
• PWM modulation: 0V–3.3V/5V/Vin; 5 kHz available on request
• Input voltage: 9–24 V DC
• Electrical protection: Reverse polarity protection
• Housing thread: M18x1 (fine-adjustable mount); standard and custom mounting solutions available
• Dimensions: Ø20 x 146 mm
• Weight: 200 g
• Operating temperature: -10 °C to +60 °C; Storage: -40 °C to +85 °C
• Expected lifetime: > 20,000 h
• Warranty: 2 years
