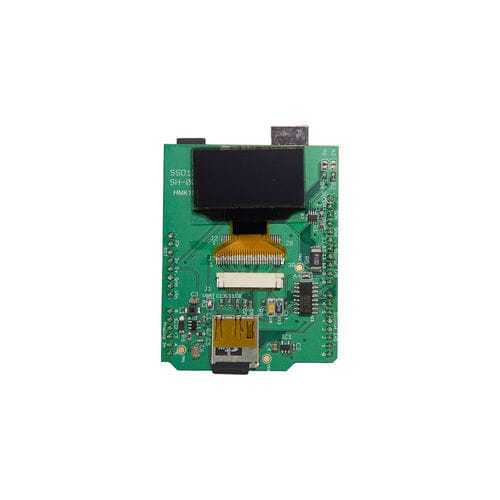

OLED display module DD-12864WE-xx

monochrome128 x 641.3"

OLED 128 X 64 DOT MONOGRAPHIC WHITE 1.3" COG Display Brightness 100 cd/m² Colour White Contrast Ratio 2000:1 Operating Temp Max 80°C Operating Temp Min -30°C Viewing Angle 80/80/80/80 Other Shape Rectangular Wide Angle Viewing Yes Touch Panel No Evaluation kit available Yes Range OLED Displays Sector Broadcast, Medical, Security, Test and Measurement, Transport Dimensions Dimensions Depth 1.45 mm Dimensions Height 34.50 mm Dimensions Width 23.00mm Mounting and Connectivity Interface 12c, MPU, SPI Serial Mechanical Mounting Display HMI Multitouch No
