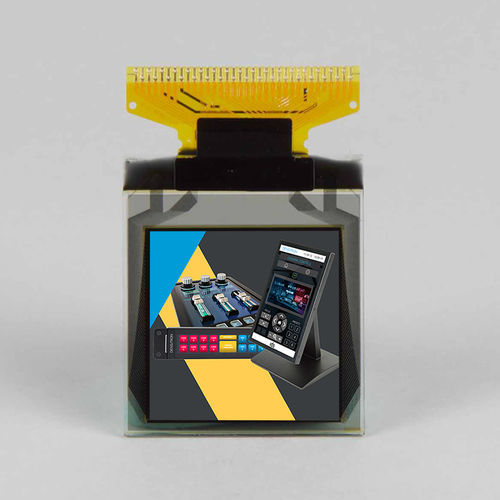

OLED display module DD-9664FC-2Acolordot-matrixfor medical equipment
Add to favorites
Compare this product
Characteristics
- Screen type
- OLED
- Type
- color, dot-matrix
- Applications
- for medical equipment, for transportation
- Interface
- SPI
- Width
22.2 mm
(0.874 in)- Height
25.7 mm
(1.0118 in)
Description
OLED 96 X 64 DOTS 65K COLOUR COG + HOTBAR 0.95INC
Display
Brightness
100 cd/m²
Colour
Full 262K colour
Contrast Ratio
2000:1
Operating Temp Max
80°C
Operating Temp Min
-30°C
Viewing Angle
80/80/80/80
Other
Shape
Rectangular
Wide Angle Viewing
Yes
Touch Panel
No
Evaluation kit available
Yes
Range
OLED Displays
Sector
Broadcast, Medical, Security, Test and Measurement, Transport
Dimensions
Dimensions Depth
1.50 mm
Dimensions Height
25.70 mm
Dimensions Width
22.20mm
Mounting and Connectivity
Interface
MPU, SPI Serial
Mechanical Mounting
Display
HMI
Multitouch
No
Catalogs
No catalogs are available for this product.
