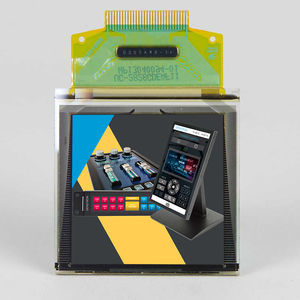

OLED display module DD-25664xx-xxcolormonochrome256 x 64
Add to favorites
Compare this product
Characteristics
- Type
- color, monochrome, OLED
- Format
- 256 x 64
- Screen size
- 5.5"
- Applications
- for medical equipment, for transportation
- Other characteristics
- SPI
- Width
65 mm
(2.5591 in)- Height
146 mm
(5.748 in)
Description
OLED 256 X 64 DOTS GREEN/YELLOW 5.5IN COF 4 BIT GREYSCALE SSD1322
Display
Brightness
60 cd/m²
Colour
yellow/ green
Contrast Ratio
2000:1
Operating Temp Max
80°C
Operating Temp Min
-30°C
Viewing Angle
80/80/80/80
Other
Shape
Rectangular
Wide Angle Viewing
Yes
Touch Panel
No
Evaluation kit available
No
Range
OLED Displays
Sector
Broadcast, Medical, Security, Test and Measurement, Transport
Dimensions
Dimensions Depth
2.00 mm
Dimensions Height
146.00 mm
Dimensions Width
65.00mm
Mounting and Connectivity
Interface
MPU, SPI Serial
Mechanical Mounting
Display
HMI
Multitouch
No
