Modular rack PR seriesfor equipment
Add to favorites
Compare this product
Characteristics
- Options
- modular, for equipment
Description

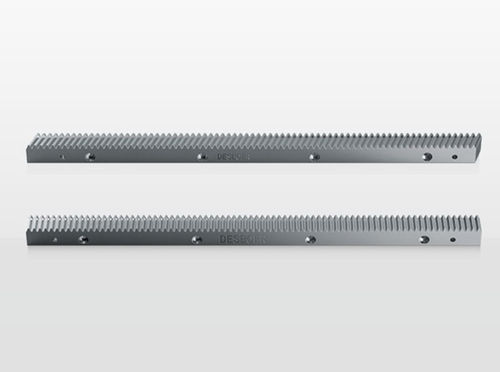

DESBOER Racks For Milling.Quenched And Tempered (Straight Teeth)
Steel No.1.0503(C45)
Module:1.5\2\3\4\5\6\8
Quenched Tepered:24-27HRC
Helix Angle:0°
Quality: 8s
Installation Methods
Step1.According to the bolt holes made in advance on the table,tightenthe rack with fastening bolts according to the pretightening force
Step2.Install rack with reverse clasp to assist installation of rackextension.After adjustment,tighten rack with fastening bolt
Step3.After ll the installation is completed,the parallelism of the rack and therunout value between the teeth are measured with the dial indicator
Step4.After the test is completed,ream the locating pin holeand install the locating pin to fix it.
Matters Needing Attention
In our professional and technical personnel selectionadvice,you can ensure that the service life of the rack,inthe installation and use of the process,you need to doadequate lubrication and rust and other maintenancework,to avoid long-term overloading of machinery andequipment operation leads to damage.If you encounterproblems during the use of the machine,please
Call our customer service number.we will solve the problem for you at the first time.
Steel No.1.0503(C45)
Module:1.5\2\3\4\5\6\8
Quenched Tepered:24-27HRC
Helix Angle:0°
Quality: 8s
Installation Methods
Step1.According to the bolt holes made in advance on the table,tightenthe rack with fastening bolts according to the pretightening force
Step2.Install rack with reverse clasp to assist installation of rackextension.After adjustment,tighten rack with fastening bolt
Step3.After ll the installation is completed,the parallelism of the rack and therunout value between the teeth are measured with the dial indicator
Step4.After the test is completed,ream the locating pin holeand install the locating pin to fix it.
Matters Needing Attention
In our professional and technical personnel selectionadvice,you can ensure that the service life of the rack,inthe installation and use of the process,you need to doadequate lubrication and rust and other maintenancework,to avoid long-term overloading of machinery andequipment operation leads to damage.If you encounterproblems during the use of the machine,please
Call our customer service number.we will solve the problem for you at the first time.
