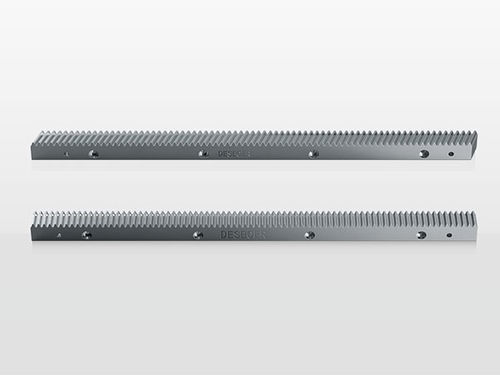

Straight-toothed gear rack PR seriescarbon steelsteelhardened steel
Add to favorites
Compare this product
Characteristics
- Teeth
- straight-toothed
- Material
- carbon steel, steel, hardened steel
- Other characteristics
- precision, ground, for industrial applications, with ground teeth
- Length
Max.: 1,017.88 mm
(40.074 in)Min.: 499.51 mm
(19.666 in)
Description
DESBOER RACKS FOR GROUND TEETH SURFACEHIGH PRECISION/STRAIGHT TEETH
Steel No.1.0503(C45)
Module:1.5\2\3\4\5\6\8
High Frequency Quenching:50-55HRC
Helix Angle:0°
Quality: 6s
Installation Methods
Step1.According to the bolt holes made in advance on the table,tightenthe rack with fastening bolts according to the pretightening force
Step2.Install rack with reverse clasp to assist installation of rack extension.After adjustment,tighten rack with fastening bolt
Step3.After ll the installation is completed,the parallelism of the rack and the run out value between the teeth are measured with the dial indicator
Step4.After the test is completed,ream the locating pin hole and install the locating pin to fix it.
Matters Needing Attention
In our professional and technical personnel selection advice,you can ensure that the service life of the rack,inthe installation and use of the process,you need to do adequate lubrication and rust and other maintenance work,to avoid long-term overloading of machinery and equipment operation leads to damage.
If you encounter problems during the use of the machine,please call our customer service number.we will solve the problem for you at the first time.
Steel No.1.0503(C45)
Module:1.5\2\3\4\5\6\8
High Frequency Quenching:50-55HRC
Helix Angle:0°
Quality: 6s
Installation Methods
Step1.According to the bolt holes made in advance on the table,tightenthe rack with fastening bolts according to the pretightening force
Step2.Install rack with reverse clasp to assist installation of rack extension.After adjustment,tighten rack with fastening bolt
Step3.After ll the installation is completed,the parallelism of the rack and the run out value between the teeth are measured with the dial indicator
Step4.After the test is completed,ream the locating pin hole and install the locating pin to fix it.
Matters Needing Attention
In our professional and technical personnel selection advice,you can ensure that the service life of the rack,inthe installation and use of the process,you need to do adequate lubrication and rust and other maintenance work,to avoid long-term overloading of machinery and equipment operation leads to damage.
If you encounter problems during the use of the machine,please call our customer service number.we will solve the problem for you at the first time.
