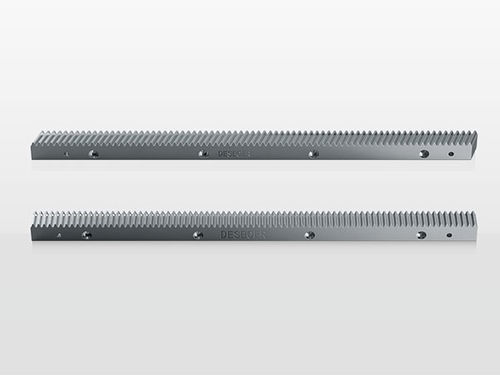

Equipment rack PR series
Add to favorites
Compare this product
Characteristics
- Options
- for equipment
Description
DESBOER Racks For Milling.Induction Hardened (Helical Teeth)
Steel No.1.0503(C45)
Module:1.5\2\3\4\5\6\8
Quenched Tepered:24-27HRC
Helix Angle:(RH)19°31'42"
Quality: 8s
Installation Methods
Step1.According to the bolt holes made in advance on the table,tighten the rack with fastening bolts according to the pretightening force
Step2.Install rack with reverse clasp to assist installation of rack extension.After adjustment,tighten rack with fastening bolt
Step3.After ll the installation is completed,the parallelism of the rack and the run out value between the teeth are measured with the dial indicator
Step4.After the test is completed,ream the locating pin hole and install the locating pin to fix it.
Matters Needing Attention
In our professional and technical personnel selection advice,you can ensure that the service life of the rack,inthe installation and use of the process,you need to do adequate lubrication and rust and other maintenancework,to avoid long-term overloading of machinery and equipment operation leads to damage.
If you encounter problems during the use of the machine,please call our customer service number.we will solve the problem for you at the first time.
Application:
Currently, our products have been widely used in various industries, such as machine tools, robotic amms, printing equipment, textile machinery,packaging machinery, non-standard automation, medical equipment,inspection equipment, laser cutting, welding, automobile manufacturing,satellite communication, metal processing, pharmaceutical industry, etc.
Steel No.1.0503(C45)
Module:1.5\2\3\4\5\6\8
Quenched Tepered:24-27HRC
Helix Angle:(RH)19°31'42"
Quality: 8s
Installation Methods
Step1.According to the bolt holes made in advance on the table,tighten the rack with fastening bolts according to the pretightening force
Step2.Install rack with reverse clasp to assist installation of rack extension.After adjustment,tighten rack with fastening bolt
Step3.After ll the installation is completed,the parallelism of the rack and the run out value between the teeth are measured with the dial indicator
Step4.After the test is completed,ream the locating pin hole and install the locating pin to fix it.
Matters Needing Attention
In our professional and technical personnel selection advice,you can ensure that the service life of the rack,inthe installation and use of the process,you need to do adequate lubrication and rust and other maintenancework,to avoid long-term overloading of machinery and equipment operation leads to damage.
If you encounter problems during the use of the machine,please call our customer service number.we will solve the problem for you at the first time.
Application:
Currently, our products have been widely used in various industries, such as machine tools, robotic amms, printing equipment, textile machinery,packaging machinery, non-standard automation, medical equipment,inspection equipment, laser cutting, welding, automobile manufacturing,satellite communication, metal processing, pharmaceutical industry, etc.
