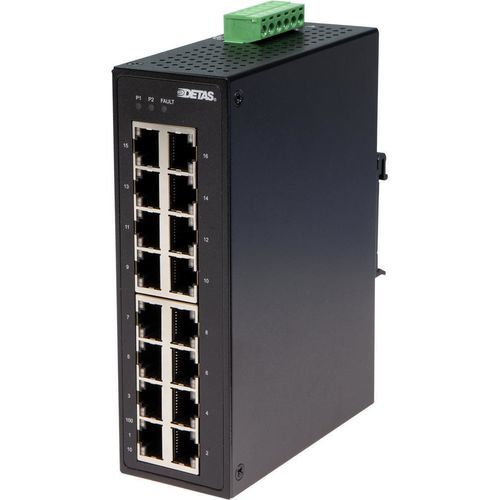

Unmanaged switch ESNU-16010

16 portsfast ethernetDIN rail

Product category
Industrial networking

Product overview
UL-certified unmanaged industrial Ethernet switch for DIN-rail or vertical wall mounting. Provides 10/100 Mbps Ethernet connectivity with RJ45 connectors and screw-terminal connections for power. Compatible with common fieldbus protocols and standard Ethernet networks, suitable for demanding industrial installations.

Code
3280160105

Features

• Speed: 10/100 Mbps
• Rated voltage: 12–48 VDC
• Mounting: DIN-rail, vertical wall mounting
• Connection type: RJ45 connector, screw terminals
• Certifications: cULus, CE, FCC, RoHS

Mechanical

• Dimensions (mm): 46 x 142 x 99
• Weight: 630 g

Technical specifications

• Model: ESNU-16010
• Code: 3280160105
• Product family: UL Certified Unmanaged Industrial Ethernet Switches
• Category: Networking
• Speed: 10/100 Mbps
• Rated voltage: 12–48 VDC
• Mounting type: DIN rail, vertical wall mounting
• Connection type: RJ45 connector, screw terminals
• Dimensions (mm): 46 x 142 x 99
• Weight: 630 g
• Certifications: cULus, CE, FCC, RoHS
