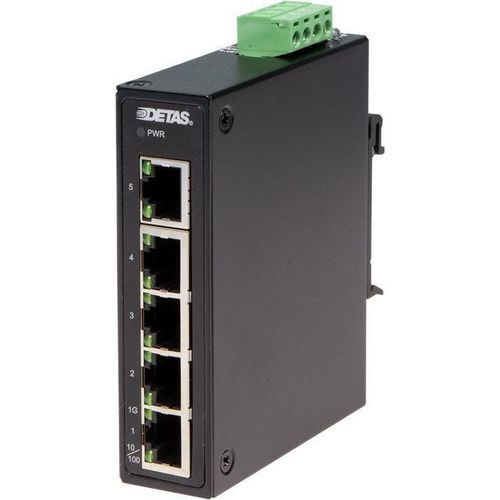

Unmanaged switch ESNU-5010

5 portsfast ethernetDIN rail

Overview
UL certified unmanaged industrial Ethernet switch designed for harsh environments. Compatible with a wide range of fieldbus protocols and all Ethernet standards. Model: ESNU-5010. Product code: 3280050105.

Key features

• Rated voltage: 12 ÷ 48 VDC
• Speed: 10/100 Mbit
• Mounting: DIN-rail and vertical wall mounting
• Connection type: RJ45 connectors and screw terminals
• Unmanaged operation for plug-and-play deployment
• Designed for industrial temperature and vibration conditions

Certifications

• cULus (UL)
• CE
• FCC
• RoHS

Dimensions & Weight
Dimensions (mm): 26 x 95 x 75 mm
Weight (g): 300

Technical specifications

• Model: ESNU-5010
• Code: 3280050105
• Device family: UL Certified Unmanaged Industrial Ethernet Switches
• Compatibility: Wide range of fieldbus protocols; all Ethernet standards
• Rated voltage: 12 ÷ 48 VDC
• Speed: 10/100 Mbit
• Mounting type: DIN-rail, Vertical wall mounting
• Connection type: RJ45 Connector, Screw Terminals
• Dimensions: 26 x 95 x 75 mm
• Weight: 300 g
• Certifications: cULus (UL), CE, FCC, RoHS
