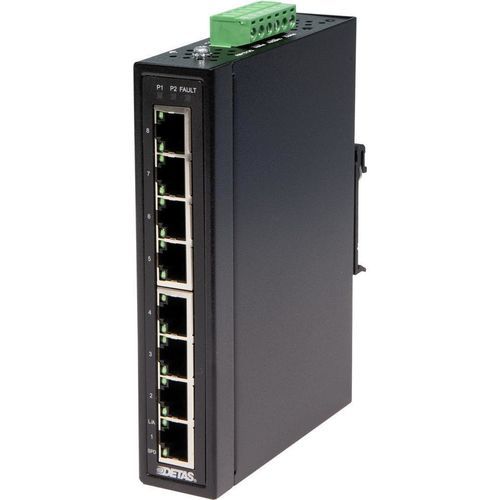

Unmanaged switch ESNU-8010

8 portsvertical-mountDIN rail

Overview
UL-certified unmanaged industrial Ethernet switch providing reliable 10/100 Mbps connectivity for harsh environments. Compatible with common fieldbus architectures and standard Ethernet networks.

Product code
3280080105

Description
Unmanaged 8-port Ethernet switch designed for industrial installations. Compact metal housing and industrial-grade components ensure stable operation in control cabinets and machine environments.

Features

• Speed: 10/100 Mbps
• Rated input voltage: 12–48 VDC
• Mounting type: DIN-rail and vertical wall mounting
• Connection type: RJ45 ports and screw terminal connections

Certifications

• cULus (UL certified)
• CE
• FCC
• RoHS

Mechanical data
Dimensions (mm): 30 x 140 x 95 mm
Weight: 450 g

Notes
Device type: Unmanaged industrial Ethernet switch suitable for factory automation and process control networks.

Technical specifications

• Model: ESNU-8010
• Code: 3280080105
• Ethernet speed: 10/100 Mbps
• Rated input voltage: 12–48 VDC
• Mounting: DIN-rail and vertical wall mounting
• Connections: RJ45 ports and screw terminal connections
• Certifications: cULus (UL), CE, FCC, RoHS
• Dimensions: 30 x 140 x 95 mm
• Weight: 450 g
