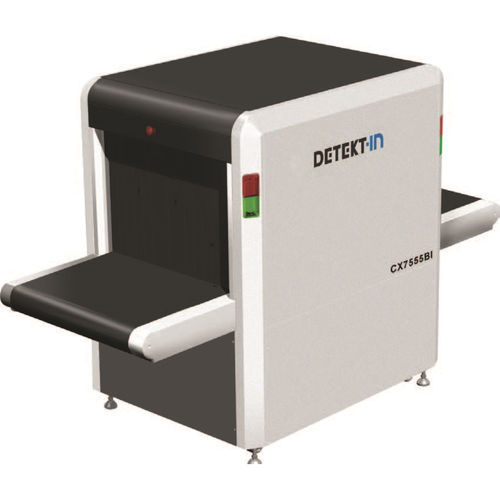

2D scanner CX7555BI

for detectioninspectionsecurity

CX7555BI Dual-Energy Single-View X-Ray Scanner – Optional Automatic Explosives & Narcotics Detection – Intuitive Interface – Large Tunnel – Compact and Ergonomic Design.
Advanced dual-energy X-ray scanner designed for the inspection of briefcases, carry-on baggage, and parcels in airports, customs, bus and railway stations, ports, major events, government offices, and stadiums.​


Intelligent automatic detection
Optional automatic detection and alarm functions for explosives and narcotics.
​Advanced atomic-number-based material classification: orange for organic materials, blue for metals, and green for mixed materials.​
Optional integrated TIP (Threat Image Projection) system for continuous operator training and ongoing monitoring of detection performance.​


High-performance imaging
State-of-the-art imaging technology delivering superior image quality with 40 AWG wire resolution and steel penetration up to 38 mm.
​Advanced image processing: color/black & white, negative, high/low penetration, organic/inorganic stripping, multi-absorptivity, and suspect material enhancement.​
Step/stepless, continuous local zoom up to 32× for detailed image analysis.​


Advanced interface and safety
Ergonomic operator interface with professional keyboard to maximize screening efficiency.
​Images can be saved in BMP, JPG, and PNG formats and transferred to USB storage devices.​
X-ray leakage levels comply with international health and radiation safety standards.​


Technical specifications

• Tunnel size: 755 mm (W) × 555 mm (H).
• Maximum load: 160 kg;
• conveyor speed: 0.20 m/s;
• conveyor height: 750 mm.​
• Image storage capacity: up to 50,000 images;
• Display resolution: 1280 × 1024 pixels.​
• Dimensions: 2340 mm (L) × 1000 mm (W) × 1507 mm (H);
• Weight: 710 kg.​

Certifications and applications ISO 9001:2000 and ISO 14001:2004 certified solution with a large tunnel, ideal for screening bulky baggage in high-security environments.
