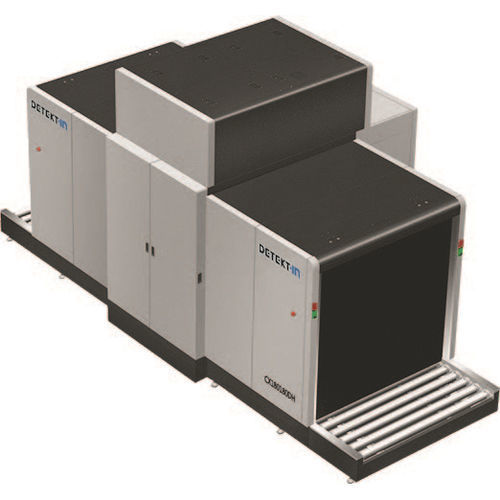

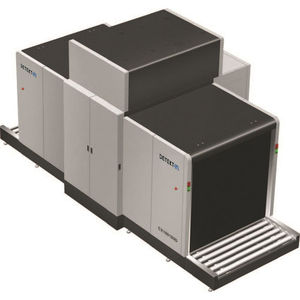

2D scanner CX180180DH

for detectionobject measurementsecurity

CX180180DH Dual-Energy Dual-View High-Energy X-Ray Scanner – Automatic Explosives & Narcotics Detection – Intuitive Interface – 1843×1820 mm Tunnel – High Penetration
Next-generation dual-view dual-energy X-ray scanner designed for inspecting large parcels and small cargo in airports, customs, railway stations, ports, logistics companies, and warehouses. Certified for pallets and ULDs. The CX180180DH employs dual-view technology where images from each view are displayed on dedicated monitors, enabling detection of dangerous objects hidden in overlapping areas.


High-Energy Dual-View Technology
Dual-view design with 300kV high-energy X-ray generator for maximum penetration.
This technology enhances threat detection quality and inspection speed, effectively locating dangerous objects and contraband hidden in overlapping areas.


High-Energy Imaging for Maximum Penetration
State-of-the-art technology delivering superior image quality with 34 AWG wire resolution and steel penetration up to 70 mm.
1280 × 1024 pixel display resolution ensures precise visualization.
Integrated detection algorithms assist operator decision-making.


Intelligent Automatic Detection
Optional automatic detection and alarms for explosives and narcotics.
Optional TIP (Threat Image Projection) system and high-density zone alerts available.


Advanced Interface and Enhanced Safety
Ergonomic interface with professional keyboard for efficient screening.
Stepwise, continuous, and local zoom for detailed examination.
Images savable in BMP, JPG, and PNG formats with USB transfer capability.
X-ray exposure less than 1 µGy/h at 5 cm from housing, compliant with international standards.


Technical Specifications

• Tunnel: 1843 mm (W) × 1820 mm (H)
• Maximum load: 2000 kg
• Conveyor speed: 0.20 m/s
• Conveyor height: 320 mm
• Generator: 300 kV high energy
• Steel penetration: up to 70 mm
• Display resolution: 1280 × 1024 pixels
• Dimensions: 6336 × 3102 × 3143 mm, 5770 kg

ISO 9001:2000 and ISO 14001:2004 certified high-energy solution with dual-view technology, ideal for port and logistics environments requiring maximum penetration.
