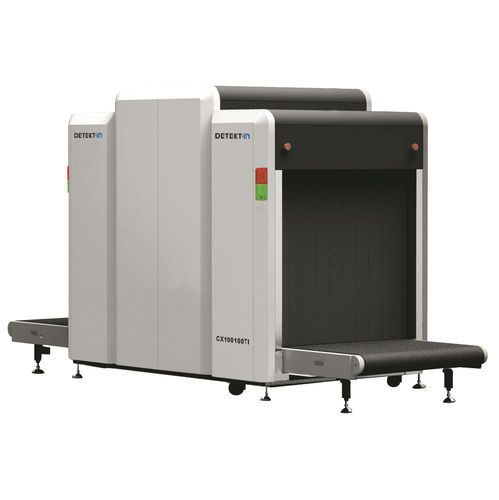

2D scanner CX100100TI

for detectioninspectionsecurity

CX100100TI Dual-Energy X-Ray Scanner – Optional Automatic Explosives & Narcotics Detection – Intuitive Interface – Large 1 m × 1 m Tunnel – High-Resolution Imaging.


Next-generation dual-energy X-ray scanner designed for the inspection of baggage, suitcases, and small cargo in airports, railway stations, customs facilities, ports, and stadiums, featuring a large 1010 × 1010 mm tunnel for bulky items.


Advanced high-resolution imaging
High image quality with 38 AWG wire resolution and steel penetration up to 35 mm.
Automatic material classification: orange for organic materials, blue for metals, and green for mixed materials.


Intelligent automatic detection
Optional automatic detection and alarm functions for explosives and narcotics.
Optional integrated TIP (Threat Image Projection) system for continuous operator training.


Advanced interface and operation
Ergonomic operator interface designed to maximize inspection efficiency.
Zoom up to 32× with step, continuous, and magnifier (local) enlargement modes;
Images can be saved in BMP, JPG, GIF, and TIFF formats.


Technical specifications

• Tunnel size: 1010 × 1010 mm.
• Maximum load: 200 kg;
• Conveyor speed: 0.20 m/s;
• Conveyor height: 300 mm.
• Image storage capacity: up to 50,000 images.
• Dimensions: 3600 × 1300 × 1790 mm;
• Weight: 1315 kg.
