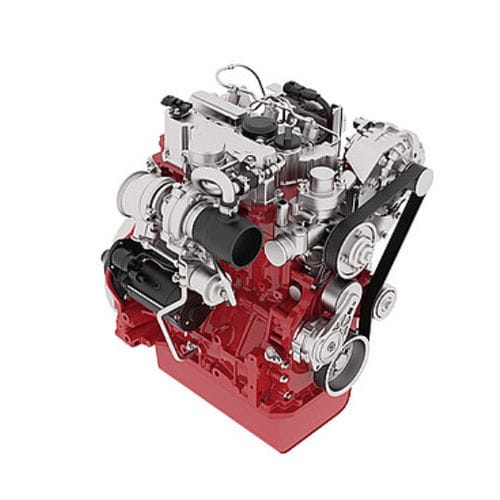

Diesel engine TCD 2.2 L3
LPG3-cylinderturbocharged

diesel engine
diesel engine
Add to favorites
Compare this product


Characteristics

Type
diesel, LPG
Number of cylinders
3-cylinder
Technology
turbocharged, common rail
Product applications
for agricultural applications
Other characteristics
compact
Torque

280 Nm (206.5174 ft.lb)

Power

55.4 kW (75.323 hp)

Rotational speed

Max.: 2,600 rpm (16,336.28 rad.min-1)

Min.: 900 rpm (5,654.87 rad.min-1)

Description

Newly-designed, 3-cylinder engine with cooled, external exhaust gas recirculation with and without turbocharging and optionally with and without charge air cooling. Robust engine design for demanding industrial applications based on the successful TCD 2.9 series. Use of DVERT® oxidation catalyst (DOC) enables maintenance-free operation under all application and ambient conditions for Tier 4 respectively use of DVERT® particulate filter (DPF) for Stage V. The powerful Common Rail injection system and highly-efficient combustion process ensure optimum engine performance at low fuel consumption. Similar foot print and major installation interfaces as TCD 2.9 and G 2.2 / G 2.9 LPG engines for ease of installation in diesel and gas powered machines. Up to 1000 h oil change intervals, maintenance-free valve train and optionally service-friendly multi-V belt drive result in low maintenance costs and increased machine availability. The extremely compact engine design and customer friendly accessories reduce the installation cost and increase the number of applications. The engines come with a modular exhaust aftertreatment system (EAT) configuration including the option of engine mounted systems. This simplifies machine integration for the OEM considerably and virtually means a drop-in solution. 100% power take-off at flywheel and front end and additional side PTO drive with up to 120 Nm for the mounting of hydraulic pumps. Variants without EAT for lesser regulated markets will enlarge the product range at a later point of time. The DEUTZ TCD 2.2 is the compact, water-cooled 3-cylinder inline engine for tractors with a power range from 45 to 55.4 kW.
