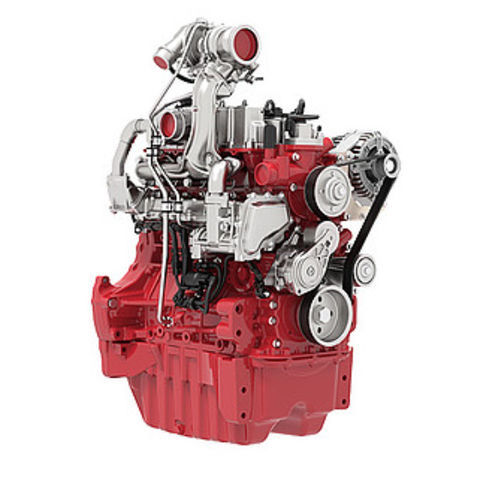

Diesel engine TCD 2.9 L4
4-cylinderturbochargedcommon rail

diesel engine
diesel engine
Add to favorites
Compare this product


Characteristics

Type
diesel
Number of cylinders
4-cylinder
Technology
turbocharged, common rail, in-line
Product applications
for agricultural applications
Other characteristics
compact, water-cooled
Torque

300 Nm, 420 Nm (221.2686 ft.lb)

Power

54.4 kW, 77 kW (73.963 hp)

Rotational speed

Min.: 900 rpm (5,654.87 rad.min-1)

Max.: 2,600 rpm (16,336.28 rad.min-1)

Description

Engine for agricultural machinery. Newly-designed, water-cooled 4-cylinder inline engine with cooled external exhaust gas return with turbo charging and charge air cooling. Use of DVERT® oxidation catalytic converter (DOC) enables maintenance-free operation under all application and ambient conditions. 100% power take-off at flywheel and front end and additional side PTO drive with up to 120 Nm for the mounting of up to two hydraulic pumps. 500 h oil change intervals and a maintenance-free valve train result in low maintenance costs and increased machine availability. The engines have an optional modular exhaust gas aftertreatment system (EAT), which can be installed onto the engine. This enables DEUTZ to carry out a drop-in installation of the whole system. Best cold starting performance even under extreme conditions. The powerful Common Rail injection system and highly-efficient combustion process with cooled external exhaust gas recirculation ensure optimum engine performance at low fuel consumption and exhaust emissions. The extremely compact engine design and customer friendly accesoires reduce the installation costs and increase the number of applications. The engine fulfil the requirements of EU stage IIIB with the DVERT® oxidation catalytic converter. A variant without EAT is available as an option for less regulated markets. The DEUTZ TCD 2.9 NT is the compact, water-cooled 4-cylinder inline engine for narrow-track tractors with a power range from 84 to 103 hp. It complies with the requirement of the EU Stage III B. The engine has turbocharging, charge-air cooling and cooled external exhaust gas recirculation.
