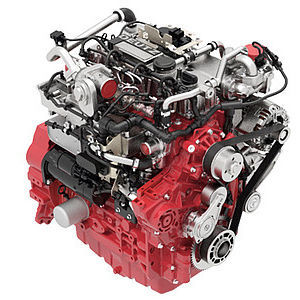

Diesel engine TCD 3.6 L4 HP
4-cylinderturbochargedcommon rail

diesel engine
diesel engine
diesel engine
Add to favorites
Compare this product


Characteristics

Type
diesel
Number of cylinders
4-cylinder
Technology
turbocharged, common rail
Product applications
for the construction industry
Cooling system
air cooling, water cooling
Emissions level
Stage V, Tier 4, Stage III, Stage IV, Euro 4, Euro 5
Other characteristics
compact
Power

105 kW
(142.76 hp)

Torque

550 Nm
(405.6592 ft.lb)

Rotational speed

Min.: 800 rpm
(5,026.55 rad.min-1)

Max.: 2,300 rpm
(14,451.33 rad.min-1)

1,600 rpm
(10,053.1 rad.min-1)

Displacement

3.6 l
(0.951 gal)

Weight

350 kg
(771.62 lb)

Length

701 mm
(27.6 in)

Width

592 mm
(23.3 in)

Height

790 mm
(31.1 in)

Description

Water-cooled 4-cylinder inline engine with cooled, external exhaust gas recirculation with turbocharging and optionally with and without charge air cooling. The powerful Common Rail injection system and the electronic engine control (EMR) with intelligent link to the drive management ensure optimum engine performance at low fuel consumption. The DVERT®oxidation catalyst for EU Stage IIIB and US EPA Tier 4 enables maintenance-free operation under all application and ambient conditions. A DVERT® particulate filter (DPF) is available as an option. With the introduction of EU Stage V, DPF will be available for all engine types. Through the use of the diesel particulate filter, the engines already comply with the EU Stage V emissions standard expected from 2019*. For ease of machine installation engine foot print and all major installation interfaces will stay unchanged for Stage V. Up to 500 h oil change intervals and a maintenance-free valve train result in low maintenance costs and increased machine availability. The extremely compact engine design and customer friendly accessories reduce the installation costs and increase the number of applications. 100% power take-off at flywheel and front end. Additionally up to two PTO drives with a total torque of up to 310 Nm. A variant without EAT is optionally available for less regu-lated markets up to emission level EU Stage IIIA. New High Torque engine version for extraordinary strong performance below 56 kW. TCD 3.6 is available with 100 kW (Stage IV) and 105 kW (Stage V).
